Wtyczka diagnostyczna for BMW 7 Series E65 745i (2003)

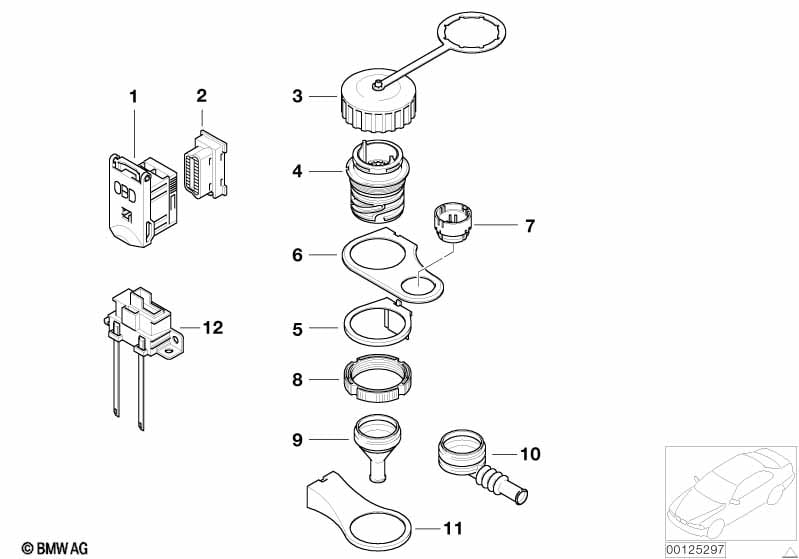

This Wtyczka diagnostyczna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | Obudowa gniazda | 16 POL. OBD | 1 | 61136906021 | $16.45 | Zakończono | Shop at ECS Tuning | |||
| pasuje tylko do | ||||||||||
| -- | Styk sprężynowy płaski Microtimer | 0,35MM²/AU | X | 61138366598 | $1.05 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Wtyczka diagnostyczna?
- This technical diagram illustrates the Wtyczka diagnostyczna within the Elektryka pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Obudowa gniazda (Part #61136906021).
- Which models use the hardware listed in this Wtyczka diagnostyczna?
- The hardware and components featured in the Wtyczka diagnostyczna are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Obudowa gniazda (61136906021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wtyczka diagnostyczna assembly?
- Each item in the Wtyczka diagnostyczna corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Obudowa gniazda by locating its position on the schematic, which then links to the official BMW part number 61136906021 for the Elektryka pojazdu section.
