Elem. poj. wycieraczek szyby tylnej for BMW MINI R50 Cooper (2004)

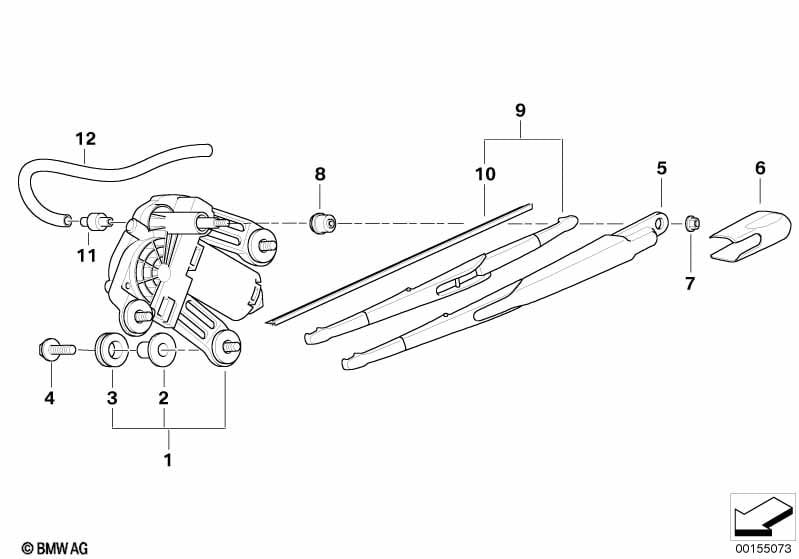

This Elem. poj. wycieraczek szyby tylnej technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silnik wycieraczki szyby tylnej | 1 | 07/2004 | 67636932013 | $144.64 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Ramię wycieraczki szyby tylnej | 1 | 07/2004 | 61627129279 | $25.09 | Shop at ECS Tuning | ||||
| -- | Pióro wycieraczki | 1 | 07/2004 | 61627129280 | $16.82 | Shop at ECS Tuning | ||||
| -- | Pokrywka ramienia wycieraczki | 1 | 07/2004 | 61627129282 | $2.68 | Shop at ECS Tuning | ||||
| -- | Końcówka do siln. wycier. tylnej szyby | 1 | 07/2004 | 61627129283 | $1.45 | Shop at ECS Tuning | ||||
| -- | Przewód adapt. | 1 | 07/2004 | 61126948099 | $10.47 | Shop at ECS Tuning | ||||
| 02 | Tulejka łożysk. wycier. szyby tylnej | 3 | 07/2004 | 61628229247 | $0.88 | Shop at ECS Tuning | ||||
| 03 | Pierścień tłum.drgań siln.wycier.tyln. | 3 | 61628229246 | $1.03 | Shop at ECS Tuning | |||||
| 04 | Śruba z podkładką | M6X30 | 3 | 07110702942 | $1.25 | Shop at ECS Tuning | ||||
| 05 | Ramię wycieraczki szyby tylnej | 1 | 07/2004 | 61627044625 | $15.96 | Shop at ECS Tuning | ||||
| 06 | Pokrywka ramienia wycieraczki | 1 | 07/2004 | 61627044627 | $5.48 | Shop at ECS Tuning | ||||
| 07 | Nakrętka sześciokątna | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Końcówka do siln. wycier. tylnej szyby | 1 | 07/2004 | 61627067906 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Pióro wycieraczki | 1 | 07/2004 | 61627079943 | $16.82 | Shop at ECS Tuning | ||||
| 10 | Gumka wycieraczki | 1 | 07/2004 | 61627079678 | $4.44 | Shop at ECS Tuning | ||||
| pasuje tylko do | ||||||||||
| -- | Pióro wycieraczki | X | 07/2004 | 61627079943 | $16.82 | Shop at ECS Tuning | ||||
| 11 | Zawór zwrotny | 1 | 61688229249 | $2.18 | Shop at ECS Tuning | |||||
| 12 | Przewód (w metrach bieżących) | X | 61688229250 | $8.13 | Shop at ECS Tuning | |||||
