Różne komplety przewodów for BMW 7 Series E65 745i (2003)

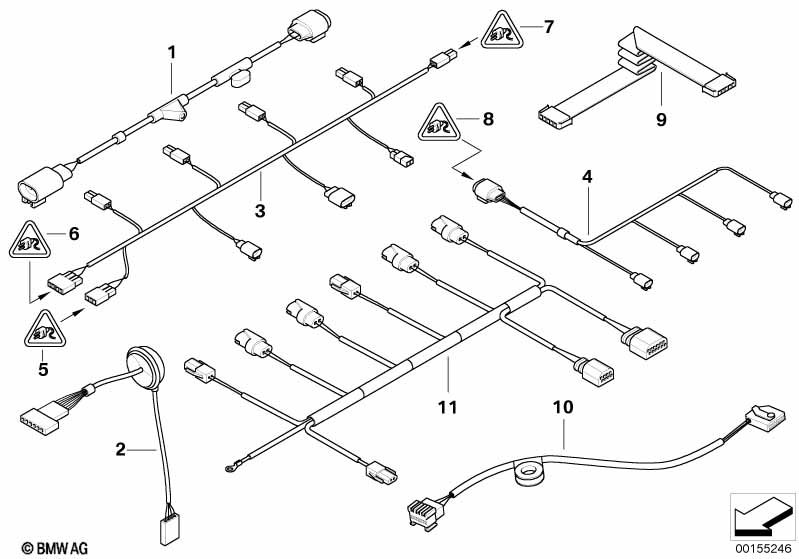

This Różne komplety przewodów technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Zestaw przew. czujn. słon./Centerspeak. | 1 | 61126910381 | $13.45 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Zestaw przew. zderzaka przedniego | 1 | 03/2004 | 61126913826 | $127.97 | Shop at ECS Tuning | ||||
| Dla samochodów z Park Distance Control (PDC) |
S508A=Tak |
|||||||||
| 04 | Zestaw przew. zderzaka tylnego | 1 | 03/2005 | 61126907313 | $48.27 | Shop at ECS Tuning | ||||
| 05 | Obudowa wtyczki | SCHWARZ/CODE A | 1 | 61138365927 | $3.32 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk męski MQS ELA z kablem | 0,75 QMM | 4 | 61130006666 | $2.15 | Shop at ECS Tuning | ||||
| 06 | Uniwersalna obudowa styków niekodowana | 1 | 61138367075 | $5.25 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Okrągły styk wtykowy 2.5 ELA z kablem | 1,0-2,5 MM² | 4 | 61130007572 | $2.65 | Shop at ECS Tuning | ||||
| 07 | Obodowa wtyczki | 12 POL./SCHWARZ | 1 | 61138387220 | $5.75 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk męski MQS ELA z kablem | 0,2- 0,5MM² | 12 | 61130005200 | $2.00 | Shop at ECS Tuning | ||||
| 08 | Uniwers. obudowa gniazda niekod. | 12 POL. | 1 | 61138373632 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | 12 | 61130056961 | Shop at ECS Tuning | |||||
| 09 | Przewód foliowy szuflady telefonu | 1 | 61126917313 | $55.52 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Night Vision |
S611A=Tak |
|||||||||
| 10 | Przewód adapt. Night Vision | 1 | 61129114123 | $35.40 | Shop at ECS Tuning | |||||
| Dla samochodów z Dynamic Drive |
S229A=Tak |
|||||||||
| 11 | Wiązka przew., ARS, blok zawor. | 1 | 61126907314 | $67.92 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
