Przewód akumulatora for BMW 7 Series E65 745i (2003)

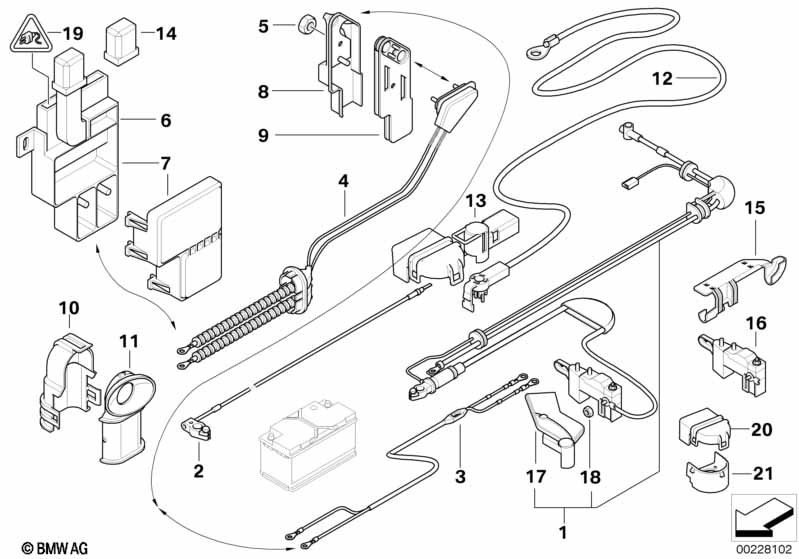

This Przewód akumulatora technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel plus akumulatora | 1 | 61126904905 | $268.53 | Shop at ECS Tuning | |||||
| 02 | Kabel minus akumulatora | L = 260 MM | 1 | 61126928050 | $24.44 | Shop at ECS Tuning | ||||
| 03 | Kabel plus akumulatora | 1 | 61126904901 | $300.13 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Kabel plus akumulatora | 1 | 61126904900 | $163.44 | Shop at ECS Tuning | |||||
| 06 | Wyprowadzenie B+ komora silnika | 1 | 61146976383 | $67.32 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Pokrywa wyprowadz. bieg. B+ w kom. siln. | 1 | 61138387568 | $7.93 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Osłona połączenia B+ | 1 | 61138387571 | $4.13 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Pokrywa wyprowadz. bieg. B+ | 1 | 61138387570 | $3.90 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Pokrywa wyprowadz. bieg. B+ | 1 | 61138371017 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Osłona połączenia B+ | 1 | 61138371016 | $0.80 | Shop at ECS Tuning | |||||
| 12 | Przew. akumul. mod. mocy/rozdz. prądu | L= 4230MM | 1 | 61116923127 | $70.20 | Shop at ECS Tuning | ||||
| 13 | Pokrywa | 6MM/16MM² | 1 | 61136900565 | $1.12 | Shop at ECS Tuning | ||||
| 13 | Pokrywa | 8MM/35MM² | 1 | 61136900569 | $1.12 | Shop at ECS Tuning | ||||
| 13 | Pokrywa | 8MM/50MM² | 1 | 61136900571 | $1.12 | Zakończono | Shop at ECS Tuning | |||
| 14 | Pokrywa wyprowadz. bieg. B+ | 1 | 61138387581 | $4.27 | Shop at ECS Tuning | |||||
| 15 | Uchwyt przewodu | 1 | 61136906944 | $2.07 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Wyprowadzenie B+ bagażnik | 1 | 61138385165 | $43.97 | Shop at ECS Tuning | |||||
| 17 | Pokrywa wyprowadz. bieg. B+ | 1 | 61138387573 | $4.32 | Zakończono | Shop at ECS Tuning | ||||
| 19 | Obudowa gniazda | 1 | 61136909042 | $7.25 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Pokrywka | 1 | 61136908271 | $3.38 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
