Przełącznik kierownicy for BMW 7 Series E65 745i (2003)

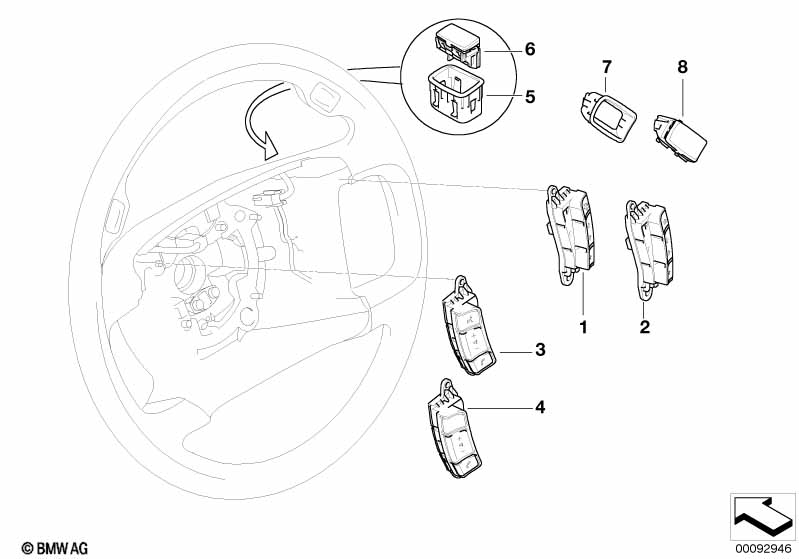

This Przełącznik kierownicy technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Steptronic |
S202A=Tak |
|||||||||
| 01 | Przełącznik MFL prawy | 1 | 61316911586 | $88.20 | Shop at ECS Tuning | |||||
| 02 | Przełącznik MFL prawy | 1 | 61316914406 | $88.20 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Przełącznik MFL lewy | 1 | 61316911585 | $88.20 | Shop at ECS Tuning | |||||
| prawy | ||||||||||
| 06 | Przełącznik Steptronic tylny | 1 | 61316911738 | $80.19 | Zakończono | Shop at ECS Tuning | ||||
| lewy | ||||||||||
| 06 | Przełącznik Steptronic tylny | 1 | 61316911737 | $80.19 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Kołnierz przedni | 1 | 61316911732 | $9.40 | Zakończono | Shop at ECS Tuning | ||||
| przód | ||||||||||
| 08 | Przełącznik Steptronic | 1 | 61316911731 | $80.19 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Przełącznik kierownicy?
- This technical diagram illustrates the Przełącznik kierownicy within the Elektryka pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Przełącznik MFL prawy (Part #61316911586).
- Which models use the hardware listed in this Przełącznik kierownicy?
- The hardware and components featured in the Przełącznik kierownicy are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Przełącznik MFL prawy (61316911586) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Przełącznik kierownicy assembly?
- Each item in the Przełącznik kierownicy corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Przełącznik MFL prawy by locating its position on the schematic, which then links to the official BMW part number 61316911586 for the Elektryka pojazdu section.
