Różne przełączniki for BMW 7 Series E65 745i (2003)

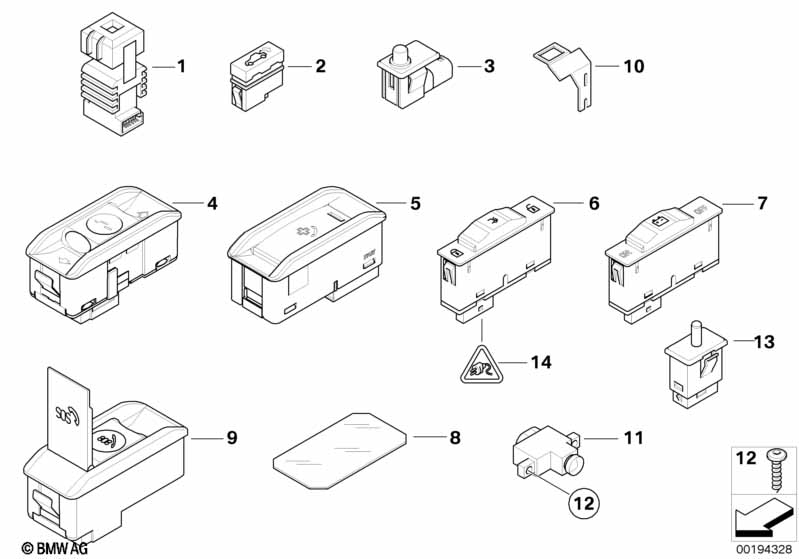

This Różne przełączniki technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Włącznik świateł stop | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| Dla samochodów z Autom. uruchamianie tylnej klapy |
S316A=Tak |
|||||||||
| 02 | Przełącznik autom. pokrywy bagażn. | 1 | 61318375580 | $73.75 | Shop at ECS Tuning | |||||
| 03 | Przełącznik stykowy | 1 | 61319119052 | $14.12 | Shop at ECS Tuning | |||||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 04 | Przełącznik dachu przesuwnego | 1 | 03/2005 | 61316904291 | $66.71 | Shop at ECS Tuning | ||||
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. lub Całk. zintegr. tel. kom., standard USA |
S630A=Tak S642A=Tak |
|||||||||
| 05 | Przycisk połączenia ratunkowego | 1 | 03/2005 | 61316922154 | $73.75 | Zakończono | Shop at ECS Tuning | |||
| 06 | Przełącznik ustawienia hotelowego | 1 | 61318379766 | $59.00 | Shop at ECS Tuning | |||||
| 07 | Przełącznik dystrybucji | 1 | 61318379594 | $59.00 | Shop at ECS Tuning | |||||
| 08 | Osłona | 1 | 03/2005 | 61314110812 | $2.90 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. lub Całk. zintegr. tel. kom., standard USA |
S630A=Tak S642A=Tak |
|||||||||
| 09 | Przycisk połączenia ratunkowego | 1 | 03/2005 | 61316922154 | $73.75 | Zakończono | Shop at ECS Tuning | |||
| 10 | Uchwyt | 1 | 61316909323 | $2.65 | Shop at ECS Tuning | |||||
| 11 | Przycisk tylnej klapy | 1 | 61316938643 | $46.62 | Shop at ECS Tuning | |||||
| 12 | Śruba | 4X14MM | 2 | 07146963839 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Czujnik/włącznik | 1 | 61311388277 | Zakończono | Shop at ECS Tuning | |||||
| zamontowany w schowku na rękawiczki | ||||||||||
| 14 | Zest. napr. obudowy gniazda | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
