Phoneboard/Szuflada for BMW 7 Series E65 745i (2003)

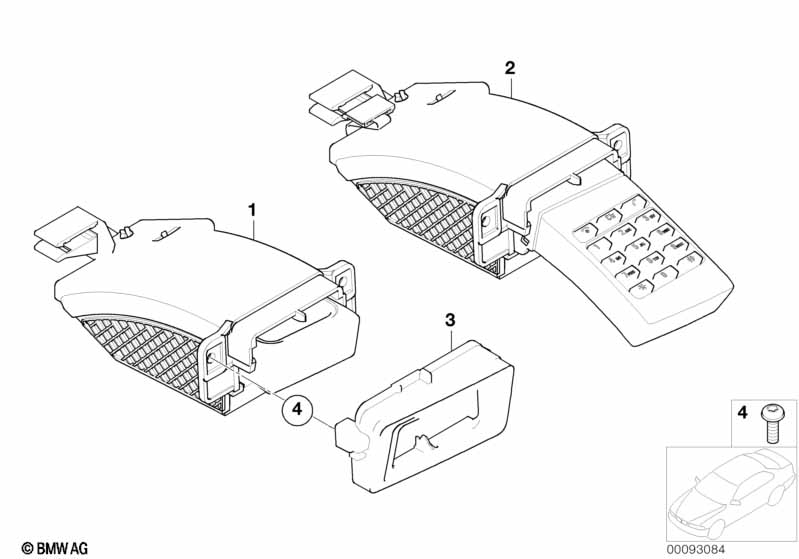

This Phoneboard/Szuflada technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. lub Całk. zintegr. tel. kom., standard USA |
S630A=Nie S642A=Nie |
|||||||||
| 01 | Półka szuflady | 1 | 03/2005 | 61316911956 | $71.68 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Telefon samochodowy Professional |
S638A=Tak |
|||||||||
| 02 | Panel telefonu | 1 | 03/2005 | 61316950110 | $326.27 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. lub Całk. zintegr. tel. kom., standard USA |
S630A=Tak S642A=Tak |
|||||||||
| 02 | Panel telefonu | 1 | 03/2005 | 61316950110 | $326.27 | Zakończono | Shop at ECS Tuning | |||
| 03 | Osłona | 1 | 03/2005 | 61316918392 | $14.48 | Zakończono | Shop at ECS Tuning | |||
| 04 | Śruba soczewkowa | 2 | 61317043728 | $0.38 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
