Sterowniki/anteny Passiv Access for BMW 7 Series E65 745i (2003)

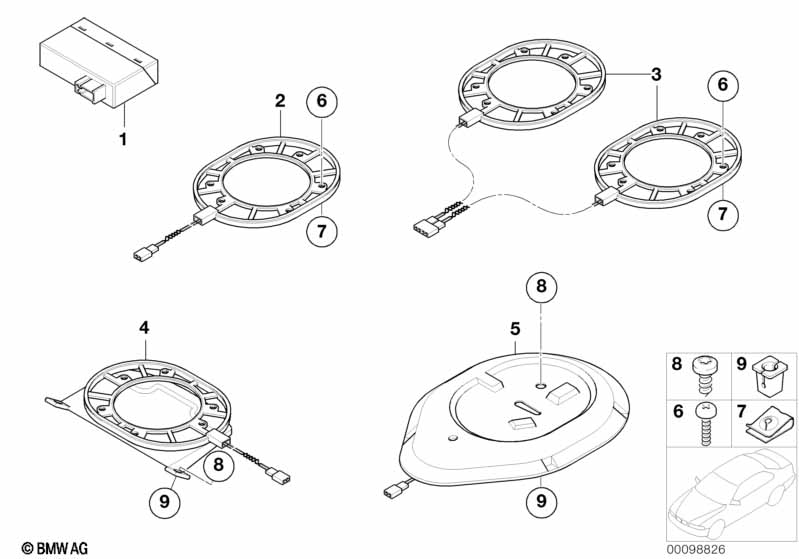

This Sterowniki/anteny Passiv Access technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Funkcja dostępu komfortowego |
S322A=Tak |
|||||||||
| 01 | Sterownik Passiv Go | 1 | 61356941803 | $332.35 | Shop at ECS Tuning | |||||
| 02 | Antena wewn. systemu dostępu komfort. | 4 | 61356911756 | $61.11 | Shop at ECS Tuning | |||||
| 03 | Antena zderzakowa syst. dost. komfort. | 1 | 61356912758 | $96.00 | Shop at ECS Tuning | |||||
| 04 | Antena tylnej półki syst. dost. komf. | 1 | 61356912759 | $61.11 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Antena bagażnika syst. dost. komfort. | 1 | 61356912760 | $61.11 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Wkręt samogwintujący | ST4,8X13MM | 2 | 07146982378 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Nakrętka | ST 4,8-9-ZSN SW | 2 | 07129900629 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Śruba soczewkowa | ISA M5X20 | 2 | 01/2007 | 07140150280 | $0.25 | Shop at ECS Tuning | |||
| 08 | Blachowkręt | ST4,8X16-C-ZNS3 | 2 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 09 | Nakrętka | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Sterowniki/anteny Passiv Access?
- This technical diagram illustrates the Sterowniki/anteny Passiv Access within the Elektryka pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Sterownik Passiv Go (Part #61356941803).
- Which models use the hardware listed in this Sterowniki/anteny Passiv Access?
- The hardware and components featured in the Sterowniki/anteny Passiv Access are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Sterownik Passiv Go (61356941803) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sterowniki/anteny Passiv Access assembly?
- Each item in the Sterowniki/anteny Passiv Access corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Sterownik Passiv Go by locating its position on the schematic, which then links to the official BMW part number 61356941803 for the Elektryka pojazdu section.
