Różne mocowania kabli for BMW 7 Series E65 745i (2003)

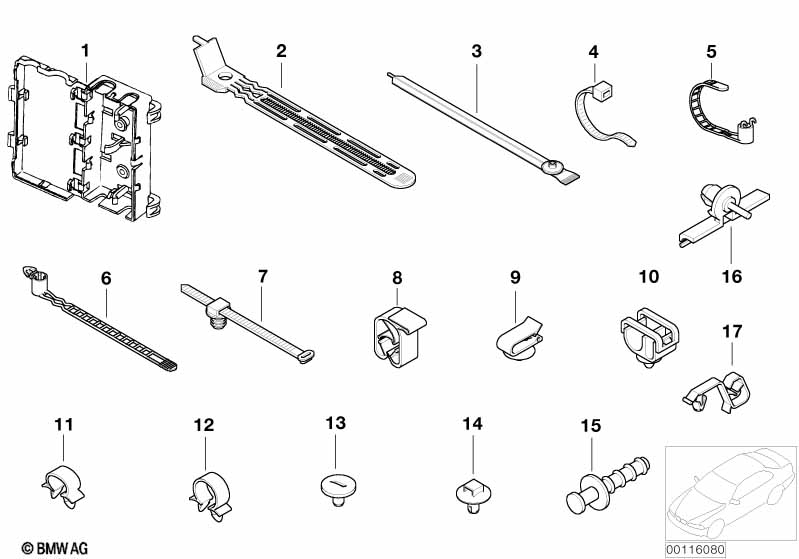

This Różne mocowania kabli technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt połączenia wtykowego | 2 | 61138372280 | $2.78 | Shop at ECS Tuning | |||||
| 02 | Opaska kablowa | X | 61136911685 | $0.77 | Shop at ECS Tuning | |||||
| 03 | Opaska kablowa | L= 250MM/B=25MM | X | 61136911684 | $1.00 | Shop at ECS Tuning | ||||
| 04 | Opaska kablowa | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Opaska kablowa | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 06 | Opaska kablowa | L=188MM | X | 61131389024 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Opaska przewodu z uchwytem | Ø=7,9 / L=150 | X | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 08 | Uchwyt przewodu | X | 61136915438 | $0.35 | Shop at ECS Tuning | |||||
| 09 | Uchwyt przewodu | X | 61131393367 | $0.48 | Shop at ECS Tuning | |||||
| 10 | Uchwyt przewodu | X | 61136911686 | $1.00 | Shop at ECS Tuning | |||||
| 11 | Uchwyt przewodu | D=12,8MM | X | 61131388727 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Uchwyt przewodu | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 13 | Przycisk | X | 51481900729 | $0.50 | Shop at ECS Tuning | |||||
| 14 | Przycisk | X | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 15 | Nit rozprężny | D = 8MM | X | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Uchwyt przewodu | X | 61136910056 | $0.50 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Uchwyt przewodu | X | 61136917370 | $0.77 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
