Elem. poj. obudowy bezpieczników for BMW 7 Series E65 745i (2003)

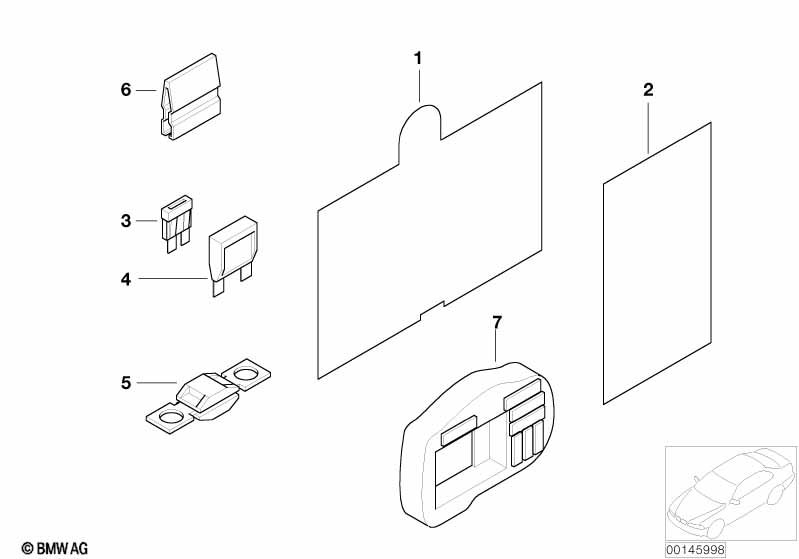

This Elem. poj. obudowy bezpieczników technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Karta obsadzenia bezpieczników | 1 | 71236987936 | $5.03 | Shop at ECS Tuning | |||||
| 02 | Karta obsadzenia bezpieczników | 1 | 71236987937 | $5.03 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik czerwony | 10A | X | 07/2017 | 61131372525 | Shop at ECS Tuning | ||||
| 03 | Bezpiecznik | 10A | X | 61146953466 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Bezpiecznik | 30A | X | 07/2017 | 61131372628 | $0.75 | Zakończono | Shop at ECS Tuning | ||
| 03 | Bezpiecznik jasnobrązowy | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik niebieski | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik Maxi żółty | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik biały | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik zielony | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik zielony | 30A | X | 61139826750 | Shop at ECS Tuning | |||||
| 03 | Bezpiecznik | 25A | X | 61131372627 | $0.75 | Zakończono | Shop at ECS Tuning | |||
| 03 | Bezpiecznik | 25A | X | 07/2017 | 61131370668 | Zakończono | Shop at ECS Tuning | |||
| 03 | Bezpiecznik | 5A | X | 61131386626 | $0.75 | Zakończono | Shop at ECS Tuning | |||
| 03 | Bezpiecznik pomarańczowy | 40A | X | 61138364543 | $0.81 | Shop at ECS Tuning | ||||
| 03 | Bezpiecznik pomarańczowy | 40A | X | 61139826751 | Shop at ECS Tuning | |||||
| 04 | Bezpiecznik Maxi niebieski | 60A | X | 61136914636 | $2.15 | Shop at ECS Tuning | ||||
| 04 | Bezpiecznik Maxi pomarańczowy | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Bezpiecznik Maxi zielony | 30A | X | 61138367146 | $2.78 | Shop at ECS Tuning | ||||
| 04 | Bezpiecznik Maxi czerwony | 50A | X | 61138367154 | $2.15 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | 100A | X | 61138364631 | $2.93 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | 50A | X | 61138365901 | $2.42 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | 80A | X | 61138365903 | $2.42 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | 200A | X | 61138365905 | $8.23 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | 250A | X | 61138376386 | $10.22 | Shop at ECS Tuning | ||||
| 06 | Uchwyt klamrowy bezpiecznika topikowego | 1 | 61146936578 | $1.10 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Elem. poj. obudowy bezpieczników?
- This technical diagram illustrates the Elem. poj. obudowy bezpieczników within the Elektryka pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Karta obsadzenia bezpieczników (Part #71236987936).
- Which models use the hardware listed in this Elem. poj. obudowy bezpieczników?
- The hardware and components featured in the Elem. poj. obudowy bezpieczników are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Karta obsadzenia bezpieczników (71236987936) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elem. poj. obudowy bezpieczników assembly?
- Each item in the Elem. poj. obudowy bezpieczników corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Karta obsadzenia bezpieczników by locating its position on the schematic, which then links to the official BMW part number 71236987936 for the Elektryka pojazdu section.
