Przewody wężowe spryskiwaczy szyb for BMW 7 Series E65 745i (2003)

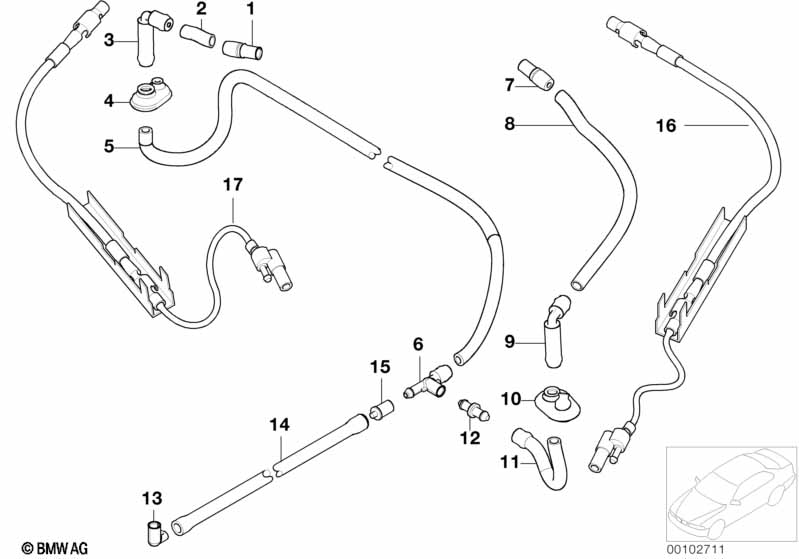

This Przewody wężowe spryskiwaczy szyb technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Jeśli wymagana jest pozycja 16 lub 17, należy użyć nowych ramion wycieraczek. |
|||||||||
| 01 | Tulejka przewodu węża | 1 | 61688248026 | $1.07 | Shop at ECS Tuning | |||||
| Długość 53 mm | ||||||||||
| 02 | Przewód elastyczny | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 03 | Element kątowy | 1 | 61668383474 | $1.42 | Shop at ECS Tuning | |||||
| 04 | Końcówka | 1 | 61667001940 | $1.77 | Shop at ECS Tuning | |||||
| Długość 1110 mm | ||||||||||
| 05 | Przewód elastyczny | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 06 | Trójnik | 1 | 61668374372 | $1.12 | Shop at ECS Tuning | |||||
| 07 | Tulejka przewodu węża | 1 | 61688248026 | $1.07 | Shop at ECS Tuning | |||||
| Długość 223 mm | ||||||||||
| 08 | Przewód elastyczny | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 09 | Element kątowy | 1 | 61668383474 | $1.42 | Shop at ECS Tuning | |||||
| 10 | Końcówka | 1 | 61607039148 | $2.20 | Shop at ECS Tuning | |||||
| Długość 130 mm | ||||||||||
| 11 | Przewód elastyczny | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 12 | Łącznik | 1 | 61688252747 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Kątownik | 1 | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
| Długość 1200 mm | ||||||||||
| 14 | Przewód elastyczny | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 15 | Tulejka przewodu węża | 1 | 61688248026 | $1.07 | Shop at ECS Tuning | |||||
