Centralny moduł bramki for BMW 7 Series E65 745i (2003)

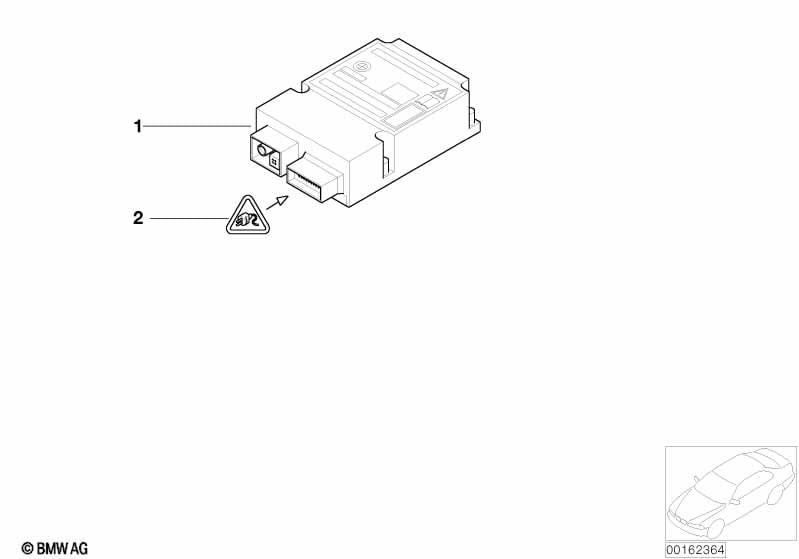

This Centralny moduł bramki technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moduł Gateway | 1 | 03/2004 | 65776941842 | $494.03 | +podst | Shop at ECS Tuning | |||
| 01 | Moduł Gateway | 1 | 03/2004 | 65772298866 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Obudowa gniazda | 1 | 03/2004 | 61138384572 | $7.45 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 03/2004 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 03/2004 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Światłowód styku prętowego | 6 | 03/2004 | 61136905233 | Shop at ECS Tuning | |||||
| -- | Światłowód styku gniazda | 6 | 03/2004 | 61136906554 | Shop at ECS Tuning | |||||
| -- | Pokrywka | 52POL./Z-CODE | 1 | 03/2004 | 12527526424 | $4.88 | Shop at ECS Tuning | |||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
