Rozdzielacz prądu for BMW 7 Series E65 745i (2003)

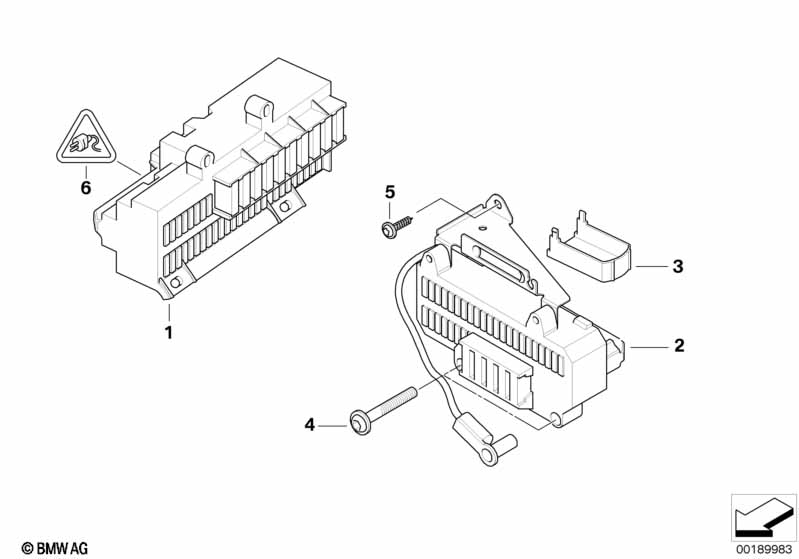

This Rozdzielacz prądu technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozdzielacz prądu | 1 | 61136900582 | $58.18 | Shop at ECS Tuning | |||||
| 02 | Rozdzielacz prądu | 1 | 61136900583 | $99.03 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Pokrywa | 1 | 61138387135 | $1.12 | Shop at ECS Tuning | |||||
| 04 | Śruba ISA | M5X25 | 4 | 07129903789 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Blachowkręt | M5X44 | 4 | 07149147336 | $0.44 | Zakończono | Shop at ECS Tuning | |||
| 06 | Uniwers. obudowa gniazda MAXI-DFK | 5 POL./Z-CODE | 1 | 61136900550 | $2.98 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Końcówka przewodu | 6,0 MM² | 5 | 61138367098 | $2.42 | Zakończono | Shop at ECS Tuning | |||
| 06 | Uniwers. obudowa gniazda MAXI-DFK | 8 POL. /Z-CODE | 1 | 61136900560 | $1.55 | Zakończono | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Końcówka przewodu | 6,0 MM² | 1 | 61138367098 | $2.42 | Zakończono | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Rozdzielacz prądu?
- This technical diagram illustrates the Rozdzielacz prądu within the Elektryka pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Rozdzielacz prądu (Part #61136900582).
- Which models use the hardware listed in this Rozdzielacz prądu?
- The hardware and components featured in the Rozdzielacz prądu are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Rozdzielacz prądu (61136900582) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rozdzielacz prądu assembly?
- Each item in the Rozdzielacz prądu corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Rozdzielacz prądu by locating its position on the schematic, which then links to the official BMW part number 61136900582 for the Elektryka pojazdu section.
