Elem. naprawcze przewodu płaskiego for BMW 7 Series E65 745i (2003)

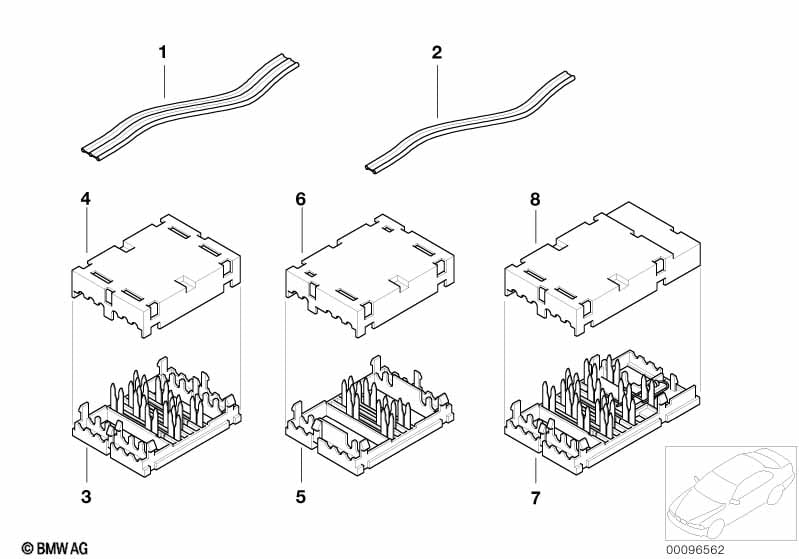

This Elem. naprawcze przewodu płaskiego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód płas. żółtoziel./czer/ciemonieb. | X | 61126902596 | $2.21 | Shop at ECS Tuning | |||||
| 02 | Przewód płaski zieleń sygn./ pomarańcz | X | 61128383085 | $2.21 | Shop at ECS Tuning | |||||
| 02 | Przewód płaski granatowy/magenta | X | 61128383086 | $2.21 | Shop at ECS Tuning | |||||
| 03 | Łącznik IDC | 3 POL. | X | 61136901701 | $3.12 | Shop at ECS Tuning | ||||
| 04 | Pokrywa łącznika IDC | 3 POL. | X | 61136913655 | $3.12 | Shop at ECS Tuning | ||||
| 05 | Łącznik IDC | 2 POL. | X | 61136901705 | $2.72 | Shop at ECS Tuning | ||||
| 06 | Pokrywa łącznika IDC | 2 POL. | X | 61136913657 | $3.10 | Shop at ECS Tuning | ||||
| 07 | Łącznik IDC, z opornikiem | 3 POL.120 OHM | X | 61136901709 | $5.03 | Shop at ECS Tuning | ||||
| 08 | Pokrywa łącznika IDC | X | 61136901707 | $1.48 | Shop at ECS Tuning |
