Przewody naprawcze RDC for BMW 7 Series E65 745i (2003)

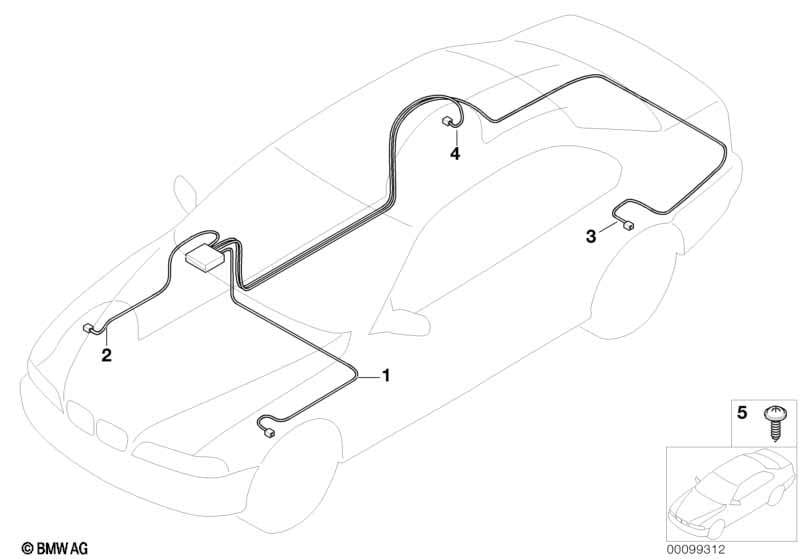

This Przewody naprawcze RDC technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód czujnika RDC /sterownik | L= 4450MM | 1 | 61116923120 | $38.53 | Zakończono | Shop at ECS Tuning | |||
| 02 | Przewód czujnika RDC /sterownik | L= 2790MM | 1 | 61116923121 | $38.53 | Zakończono | Shop at ECS Tuning | |||
| 03 | Przewód czujnika RDC /sterownik | L= 6135MM | 1 | 61126923118 | $38.53 | Shop at ECS Tuning | ||||
| 04 | Przewód czujnika RDC /sterownik | L= 4570MM | 1 | 61116923119 | $38.53 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
