Przeł. funkcji dod. fotela tylnego for BMW 7 Series E65 745i (2003)

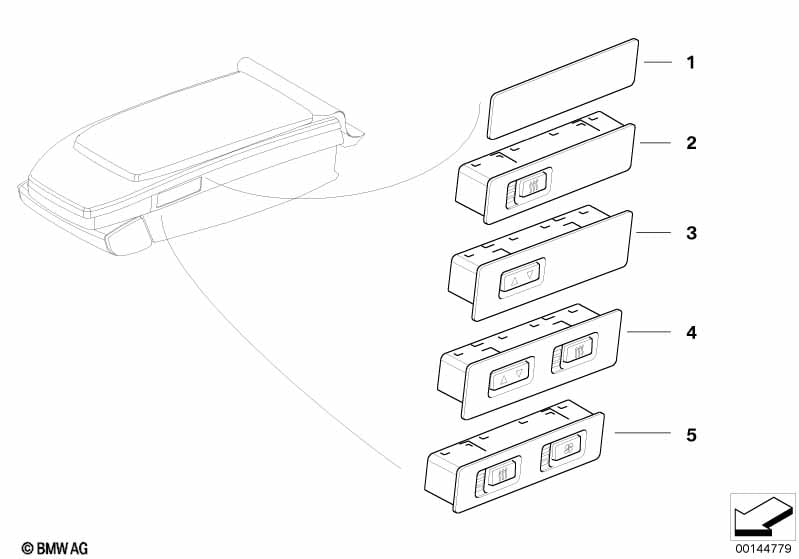

This Przeł. funkcji dod. fotela tylnego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona | 1 | 61316918439 | $10.38 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Ekran siedzenia tylnego i Poduszka bocz. pasaż. na tyln. siedz. |
S603A=Tak S261A=Nie |
|||||||||
| 02 | Przełącznik podgrz. fotela tylny lewy | 1 | 61316918423 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Przełącznik podgrz. fotela tylny prawy | 1 | 61316918424 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. lub Ekran siedzenia tylnego |
S261A=Tak S603A=Tak |
|||||||||
| 02 | Przełącznik podgrz. fotela tylny lewy | 1 | 61316918417 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Przełącznik podgrz. fotela tylny prawy | 1 | 61316918422 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. i Ekran siedzenia tylnego |
S261A=Nie S603A=Nie |
|||||||||
| 02 | Przełącznik podgrz. fotela tylny lewy | 1 | 61316971633 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Przełącznik podgrz. fotela tylny prawy | 1 | 61316971634 | $67.34 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. i Ekran siedzenia tylnego |
S261A=Tak S603A=Nie |
|||||||||
| 03 | Przełącznik zagłówka tylnego lewego | 1 | 61316918418 | $60.61 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Przełącznik zagłówka tylnego prawego | 1 | 61316918419 | $60.61 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. i Ekran siedzenia tylnego |
S261A=Tak S603A=Tak |
|||||||||
| 03 | Przełącznik zagłówka tylnego lewego | 1 | 61316918425 | $60.61 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Przełącznik zagłówka tylnego prawego | 1 | 61316918426 | $60.61 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. i Ekran siedzenia tylnego |
S261A=Tak S603A=Nie |
|||||||||
| 04 | Przełącznik ogrzewania/zagłówek lewy | 1 | 61316918420 | $90.92 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Przełącznik ogrzewania/zagłówek prawy | 1 | 61316918421 | $90.92 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. i Ekran siedzenia tylnego |
S261A=Tak S603A=Tak |
|||||||||
| 04 | Przełącznik ogrzewania/zagłówek lewy | 1 | 61316918427 | $90.92 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Przełącznik ogrzewania/zagłówek prawy | 1 | 61316918428 | $90.92 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
