Sterownik modułu holown. for BMW MINI Clubman R55 Cooper (2006)

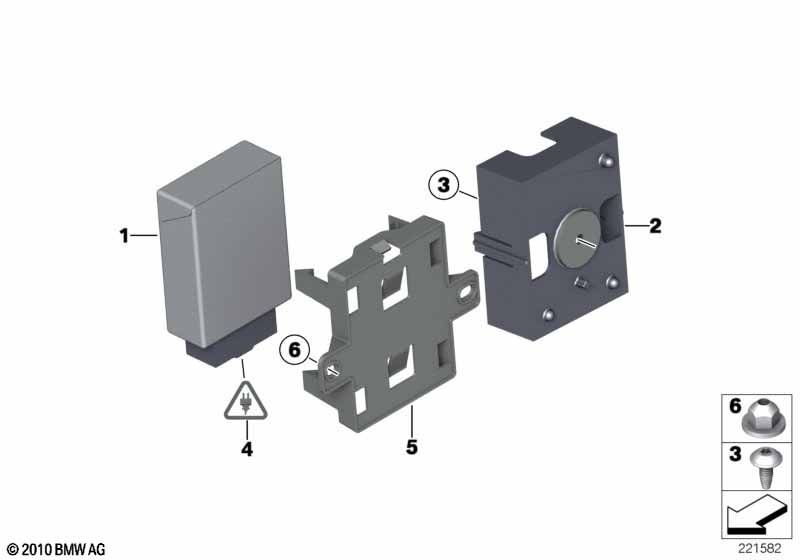

This Sterownik modułu holown. technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Przestrzegać instr. napr. REP-61 35 502! | ||||||||||
| 01 | Moduł przyczepy | 4R | 1 | 03/2009 | 71606850497 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS | 0,5-0.75 MM²/SN | 12 | 03/2009 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| -- | Pokrywka | 1 | 03/2009 | 61136905167 | $2.59 | Shop at ECS Tuning | ||||
| -- | Obudowa gniazda | 20 POL./ Z-CODE | 1 | 03/2009 | 61136905178 | $1.05 | Shop at ECS Tuning | |||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 1,5-2,5 MM² SN | 8 | 03/2009 | 61138364834 | $0.35 | Shop at ECS Tuning | |||
| 02 | Uchwyt modułu przyczepy | 1 | 61352755099 | Shop at ECS Tuning | ||||||
| 03 | Blachowkręt | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Obudowa gniazda | 16 POL./Z-CODE | 1 | 03/2009 | 61136901662 | $2.55 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 03/2009 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 03/2009 | 61130056960 | Shop at ECS Tuning | ||||
