Zintegrowany moduł zasilania for BMW 7 Series E65 745i (2003)

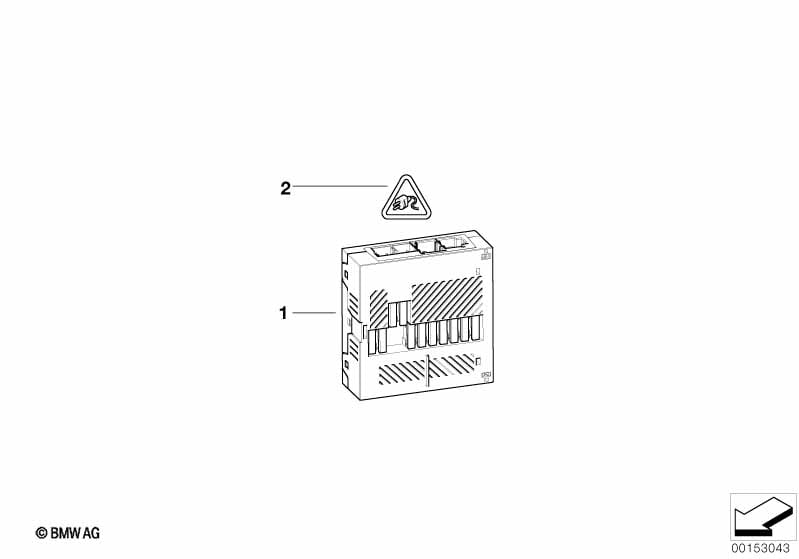

This Zintegrowany moduł zasilania technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zintegrowany moduł zasilania | 1 | 12527510638 | $107.72 | Shop at ECS Tuning | |||||
| 02 | Obudowa gniazda | 2 POL. MPQ | X | 12527511050 | $2.53 | Shop at ECS Tuning | ||||
| 02 | Obudowa gniazda | 1 POL. SCHWARZ | 1 | 61136900545 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Tulejka wtykowa LSK8 | 2,5-4,0MM² | 1 | 12527508006 | $3.70 | Shop at ECS Tuning | ||||
| 02 | Obudowa tulejki wtykowej | 2-POLIG | 1 | 61136907385 | $2.33 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Tulejka wtykowa LSK8 | 2,5-4,0MM² | 2 | 12527508006 | $3.70 | Shop at ECS Tuning | ||||
| 02 | Obudowa gniazda | 3 POL. | 1 | 61136913610 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 0,5-1,0 MM² | X | 61138364836 | $0.35 | Shop at ECS Tuning | ||||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 1,0- 2,5 MM² SN | X | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
