Zest. dopos. - ośw. bagażnika for BMW 3 Series E21 320

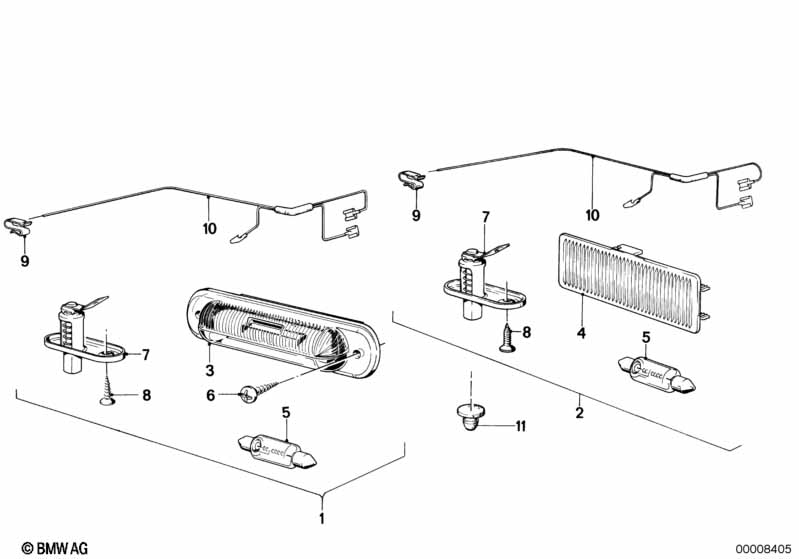

This Zest. dopos. - ośw. bagażnika technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zest. dopos. - ośw. bagażnika | 1 | 08/1979 | 63311360752 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Żarówka | 12V 10W | X | 08/1979 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 03 | Lampa | 1 | 08/1979 | 63311362711 | $27.29 | Zakończono | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Żarówka | 12V 10W | X | 08/1979 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 05 | Żarówka | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Wkręt samogwintujący | ST4,2X16-ABW | 2 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Czujnik/włącznik | 1 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 08 | Blachowkręt z łbem wpuszczanym | ST3,9X9,5 | X | 07119902216 | $0.14 | Zakończono | Shop at ECS Tuning | |||
| 09 | Zacisk przewodu | 4 | 12527575212 | $0.78 | Shop at ECS Tuning | |||||
| 09 | Zacisk przewodu | 4 | 25111220837 | $0.68 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Przewód lampy ośw. bagażnika | 1 | 61121355618 | $7.57 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Bufor ogranicznika dźwigni sprzęgła | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Zest. dopos. - ośw. bagażnika?
- This technical diagram illustrates the Zest. dopos. - ośw. bagażnika within the Instalacja oświetleniowa group for the 3 Series E21 320. It provides a detailed exploded view of the components, identifying key parts such as the Zest. dopos. - ośw. bagażnika (Part #63311360752).
- Which models use the hardware listed in this Zest. dopos. - ośw. bagażnika?
- The hardware and components featured in the Zest. dopos. - ośw. bagażnika are specific to the 3 Series E21 320. These technical specifications ensure that parts like the Zest. dopos. - ośw. bagażnika (63311360752) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zest. dopos. - ośw. bagażnika assembly?
- Each item in the Zest. dopos. - ośw. bagażnika corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Zest. dopos. - ośw. bagażnika by locating its position on the schematic, which then links to the official BMW part number 63311360752 for the Instalacja oświetleniowa section.
