Lampa tylna for BMW 2.5CS-3.0CSL 3.0CSi

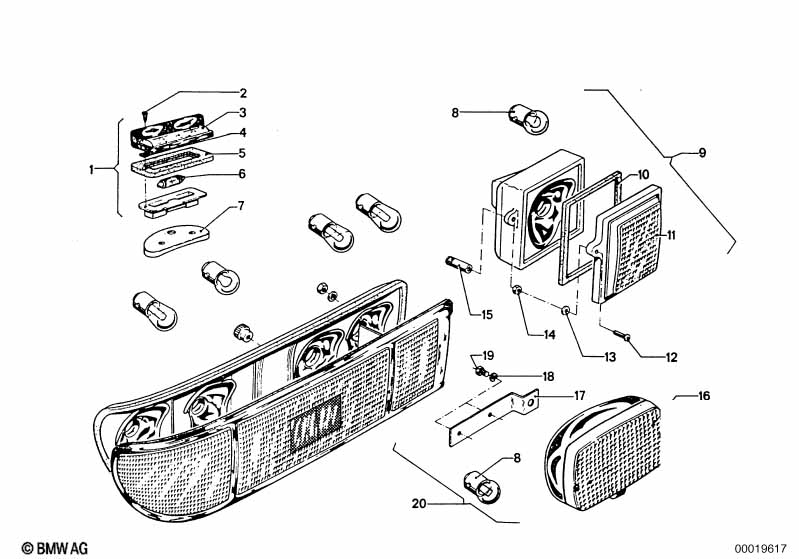

This Lampa tylna technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | oświetlenie tablicy rejestracyjnej | 2 | 63261353470 | $50.43 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja krajowa Włochy |
L814A=Tak |
|||||||||
| 01 | oświetlenie tablicy rejestracyjnej | 2 | 63268777102 | $36.56 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Wkręt samogwintujący | ST3,9X19 | 4 | 07119906744 | $0.37 | Shop at ECS Tuning | ||||
| 03 | oświetlenie tablicy rejestracyjnej | 2 | 63261353470 | $50.43 | Shop at ECS Tuning | |||||
| 04 | Nakrętka | ST4,2-2 | 4 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Uszczelka | 2 | 63261352197 | Zakończono | Shop at ECS Tuning | |||||
| 06 | Żarówka | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Żarówka | P21W/12V/21W | 1 | 12/1968 | 11/1975 | 63217160789 | $1.96 | Shop at ECS Tuning | ||
| 08 | Żarówka Longlife | P21W/12V/21W | 1 | 12/1968 | 11/1975 | 63217160790 | $2.38 | Shop at ECS Tuning | ||
| 09 | Tylna lampa przeciwmgłowa | 1 | 12/1968 | 11/1975 | 63241353254 | $206.38 | Zakończono | Shop at ECS Tuning | ||
| 10 | Uszczelka | 1 | 12/1968 | 11/1975 | 63241353256 | Zakończono | Shop at ECS Tuning | |||
| 11 | Szkło lampy | 1 | 12/1968 | 11/1975 | 63241353255 | Zakończono | Shop at ECS Tuning | |||
| 12 | Kpl. śruby z łbem grzybkowym 20 | M5X35 | 2 | 07509064344 | Zakończono | Shop at ECS Tuning | ||||
| 13 | Podkładka | A 5,3 | 2 | 07119931038 | Zakończono | Shop at ECS Tuning | ||||
| 14 | Nakrętka sześciokątna | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 15 | Nakrętka | M 5 | 2 | 63211350710 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
