Tylna lampa pozycyjna w pokrywie bag. for BMW 3 Series E46 325xi (2001)

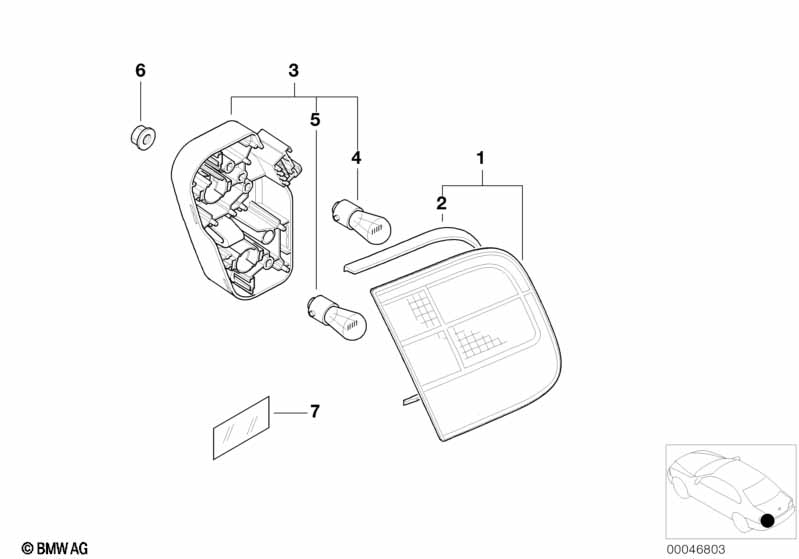

This Tylna lampa pozycyjna w pokrywie bag. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lampa na pokrywie bagażnika lewa | 1 | 63218368759 | $62.00 | Shop at ECS Tuning | |||||
| 01 | Lampa na pokrywie bagażnika prawa | 1 | 63218368760 | $62.00 | Shop at ECS Tuning | |||||
| 02 | Uszczelka lampy w pokrywie bagażnika | 2 | 63216900459 | $5.98 | Shop at ECS Tuning | |||||
| 03 | Panel żarówek lewy | 1 | 63217165843 | Zakończono | Shop at ECS Tuning | |||||
| 03 | Panel żarówek prawy | 1 | 63217165844 | $8.37 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Tylne światło przeciwmgłowe |
=Tak |
|||||||||
| 03 | Panel żarówek lewy | 1 | 63218374807 | $26.27 | Shop at ECS Tuning | |||||
| 03 | Panel żarówek prawy | 1 | 63218374808 | $26.27 | Shop at ECS Tuning | |||||
| pasuje tylko do światła cofania | ||||||||||
| 04 | Żarówka | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Żarówka Longlife | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| Dla samochodów z Tylne światło przeciwmgłowe |
=Tak |
|||||||||
| 05 | Żarówka | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Żarówka Longlife | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Nakrętka z podkładką | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Folia ochronna | 40X40MM | 4 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
