Reflektor for BMW 7 Series E65 745i (2003)

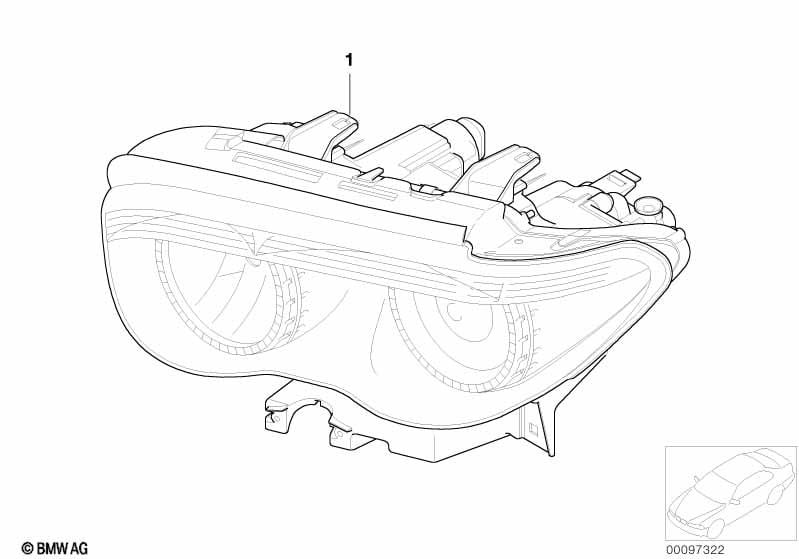

This Reflektor technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Reflektor ze światłem ksenonowym nie zawiera sterownika zapłon. i lampy ze światłem ksenonowym. |
|||||||||
| 01 | Reflektor ksenonowy lewy | 1 | 03/2005 | 63127165449 | $1209.64 | Shop at ECS Tuning | ||||
| 01 | Reflektor ksenonowy prawy | 1 | 03/2005 | 63127165450 | $1209.64 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Lampy kierunkowskazów białe |
S785A=Tak |
|||||||||
| 01 | Refl. ksenon. lewy, kierunkowskaz biały | 1 | 03/2005 | 63127165455 | $1242.78 | Shop at ECS Tuning | ||||
| 01 | Refl. ksenon. prawy,kierunkowskaz biały | 1 | 03/2005 | 63127165456 | $1242.78 | Shop at ECS Tuning | ||||
| Dla samochodów z Adaptacyjne doświetlanie zakrętów i Lampy kierunkowskazów białe |
S524A=Tak S785A=Tak |
|||||||||
| 01 | Reflektor z podw. św. ksenon. AKL lewy | 1 | 03/2005 | 63127164721 | $1360.11 | Shop at ECS Tuning | ||||
| 01 | Reflektor z podw. św. ksenon. AKL prawy | 1 | 03/2005 | 63127164722 | $1360.11 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
