Lampa kierunkowskazu dodatkowego for BMW 7 Series E65 745i (2003)

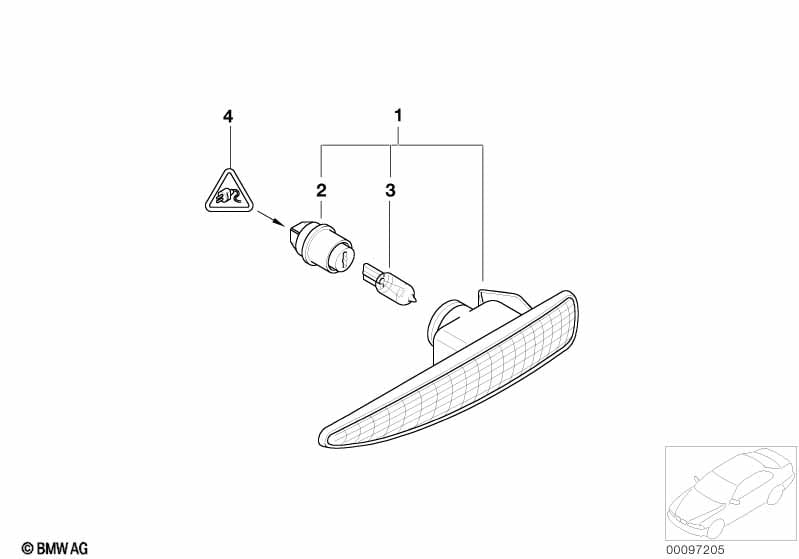

This Lampa kierunkowskazu dodatkowego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lampa kierunkowskazu dodatkowa, lewa | 1 | 03/2005 | 63137164755 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Lampa kierunkowskazu dodatkowa, prawa | 1 | 03/2005 | 63137164756 | $24.57 | Shop at ECS Tuning | ||||
| Dla samochodów z Lampy kierunkowskazów białe |
S785A=Tak |
|||||||||
| 01 | Lampa kierunkowsk. dod., lewa, biała | 1 | 03/2005 | 63137164757 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Lampa kierunkowsk. dod., prawa, biała | 1 | 03/2005 | 63137164758 | $24.57 | Shop at ECS Tuning | ||||
| 02 | Gniazdo żarówki | 2 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| 03 | Żarówka Longlife | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Żarówka żółta | 12V 5W | 2 | 63217160798 | $2.96 | Shop at ECS Tuning | ||||
| Dla samochodów z Lampy kierunkowskazów białe |
S785A=Tak |
|||||||||
| 03 | Żarówka żółta | 12V 5W | 2 | 12/2004 | 63217160798 | $2.96 | Shop at ECS Tuning | |||
| 03 | Żarówka żółta | 12V 5W | 2 | 03/2005 | 63217160798 | $2.96 | Shop at ECS Tuning | |||
| 03 | Żarówka srebrna | 12V 5W | 2 | 03/2005 | 63217165496 | $7.50 | Shop at ECS Tuning | |||
| 04 | Uniwers. obudowa gniazda niekod. | 2 POL. | 2 | 61138795954 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 04 | Zest. napr. obudowy gniazda | 2 POL. | 2 | 61132359999 | Shop at ECS Tuning | |||||
