Tylna lampa pozycyjna w pokrywie bag. for BMW 7 Series E65 745i (2003)

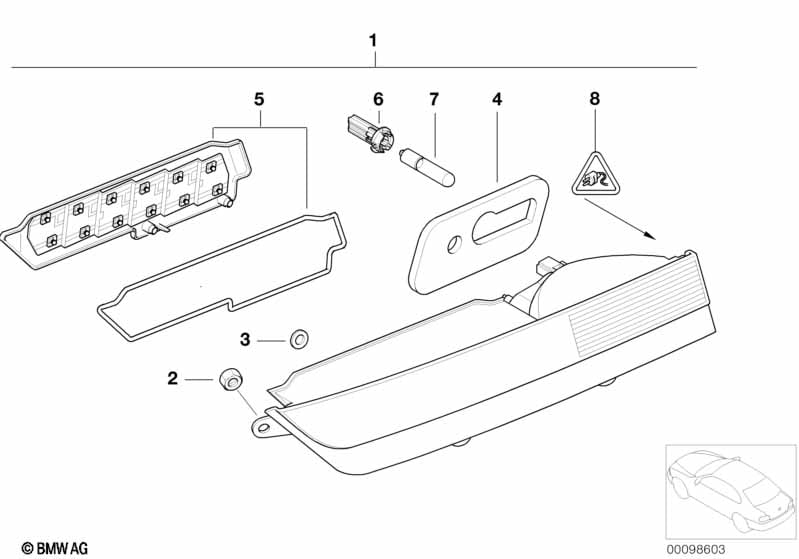

This Tylna lampa pozycyjna w pokrywie bag. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lampa na pokrywie bagażnika lewa | 1 | 03/2005 | 63217164743 | $130.08 | Shop at ECS Tuning | ||||
| 01 | Lampa na pokrywie bagażnika prawa | 1 | 03/2005 | 63217164744 | $130.08 | Shop at ECS Tuning | ||||
| 02 | Nakrętka z podkładką | M5 | 4 | 03/2005 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 03 | Uszczelka lampy w pokrywie bagażnika | 2 | 03/2005 | 63216916470 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Uszczelka lampy tyln. w pokr. bag. lewa | 1 | 03/2005 | 63216917095 | $5.98 | Shop at ECS Tuning | ||||
| 04 | Uszczelka lampy tyln. w pokr. bag. prawa | 1 | 03/2005 | 63216917096 | $5.98 | Shop at ECS Tuning | ||||
| 05 | Zest. napr. płytki druk. tyl. św. lew. | 1 | 03/2005 | 63216917093 | $72.75 | Shop at ECS Tuning | ||||
| 05 | Zest. napr. płytki druk. tyl. św. pr. | 1 | 03/2005 | 63216917094 | $72.75 | Shop at ECS Tuning | ||||
| 08 | Uniwers. obudowa gniazda niekod. | 3 POL. | 2 | 03/2005 | 61138377072 | $1.37 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 03/2005 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 03/2005 | 61130056960 | Shop at ECS Tuning | ||||
