Tyl. lampa poz. pokr. bag, środkowa for BMW 7 Series E65 745i (2003)

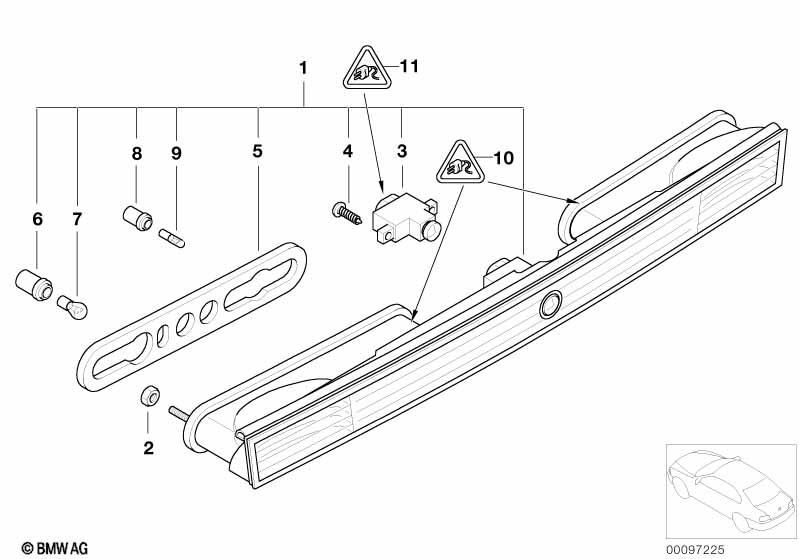

This Tyl. lampa poz. pokr. bag, środkowa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tyl. św. poz. tylnej klapy, śr. białe | 1 | 03/2005 | 63217164746 | $186.13 | Shop at ECS Tuning | ||||
| 01 | Tyl. lampa poz. pokr. bag, środkowa | 1 | 03/2005 | 63217164747 | $186.13 | Shop at ECS Tuning | ||||
| 02 | Nakrętka z podkładką | M5 | 4 | 03/2005 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 03 | Przycisk tylnej klapy | 1 | 03/2005 | 61316938643 | $46.62 | Shop at ECS Tuning | ||||
| 04 | Śruba | 4X14MM | 2 | 03/2005 | 07146963839 | $0.20 | Shop at ECS Tuning | |||
| 05 | Uszczelka lampy tyln. w pokr. bag. lewa | 1 | 03/2005 | 63216917099 | $5.98 | Shop at ECS Tuning | ||||
| 05 | Uszczelka lampy tyln. w pokr. bag. prawa | 1 | 03/2005 | 63216917100 | $5.98 | Shop at ECS Tuning | ||||
| 06 | Gniazdo żarówki podśw. tabl. rej. | 2 | 03/2005 | 63216916472 | $9.40 | Shop at ECS Tuning | ||||
| 07 | Żarówka Longlife | 5W | 2 | 12/2004 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 07 | Żarówka Longlife | 5W | 2 | 03/2005 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 08 | Gniazdo żarówki | W16W | 2 | 03/2005 | 63216916471 | $7.05 | Shop at ECS Tuning | |||
| 09 | Żarówka Longlife | 12V 16W | 2 | 03/2005 | 63217160935 | $6.42 | Shop at ECS Tuning | |||
| 10 | Uniwers. obudowa gniazda niekod. | 3 POL. | 2 | 03/2005 | 61138377072 | $1.37 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 03/2005 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | 2 | 03/2005 | 61130056960 | Shop at ECS Tuning | ||||
| 11 | Uniwers. obudowa gniazda niekod. | 2 POL. | 1 | 03/2005 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | 2 | 03/2005 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | 2 | 03/2005 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Zest. napr. obudowy gniazda | 2 POL. | 1 | 03/2005 | 61132360043 | Shop at ECS Tuning | ||||
| 11 | Zest. napr. obudowy gniazda | 2 POL. | 1 | 03/2005 | 61132360043 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Tyl. lampa poz. pokr. bag, środkowa?
- This technical diagram illustrates the Tyl. lampa poz. pokr. bag, środkowa within the Instalacja oświetleniowa group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Tyl. św. poz. tylnej klapy, śr. białe (Part #63217164746).
- Which models use the hardware listed in this Tyl. lampa poz. pokr. bag, środkowa?
- The hardware and components featured in the Tyl. lampa poz. pokr. bag, środkowa are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Tyl. św. poz. tylnej klapy, śr. białe (63217164746) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tyl. lampa poz. pokr. bag, środkowa assembly?
- Each item in the Tyl. lampa poz. pokr. bag, środkowa corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Tyl. św. poz. tylnej klapy, śr. białe by locating its position on the schematic, which then links to the official BMW part number 63217164746 for the Instalacja oświetleniowa section.
