Cz. elektron. reflektora ksenonowego for BMW 7 Series E65 745i (2003)

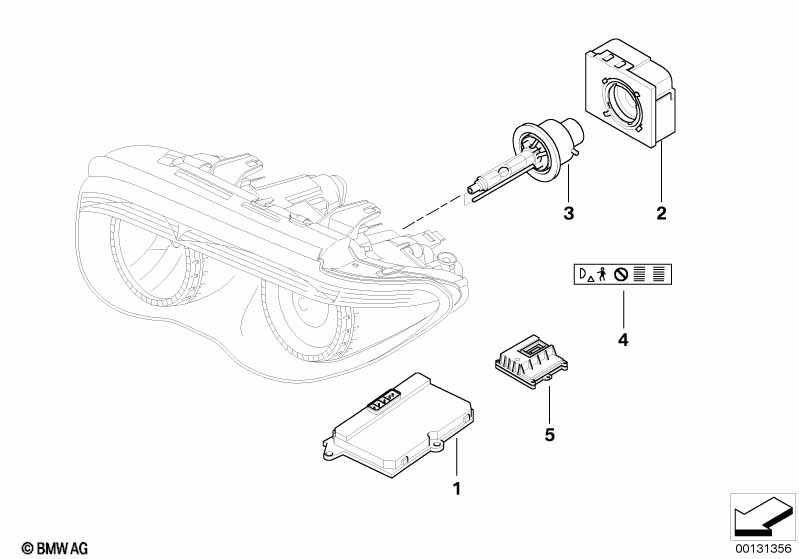

This Cz. elektron. reflektora ksenonowego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sterownik światła ksenonowego | 2 | 03/2005 | 63126907488 | $449.90 | Shop at ECS Tuning | ||||
| 02 | Zapłonnik światła ksenonowego | 2 | 03/2005 | 63126907489 | $104.10 | Shop at ECS Tuning | ||||
| 03 | Żarówka ksenonowa | D2-S 35W | 2 | 03/2005 | 63217160806 | $212.43 | Shop at ECS Tuning | |||
| 04 | Naklejka świateł ksenonowych | 2 | 03/2005 | 71237248266 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja krajowa Chiny |
L8AAA=Tak |
|||||||||
| 04 | Naklejka świateł ksenonowych | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| Dla samochodów z Adaptacyjne doświetlanie zakrętów |
S524A=Tak |
|||||||||
| 05 | Skrzynka elektron. ALC, niekodowana | 2 | 03/2005 | 63127189312 | $147.35 | Shop at ECS Tuning | ||||
