Poj. części reflektora ksenonowego for BMW 7 Series E65 745i (2003)

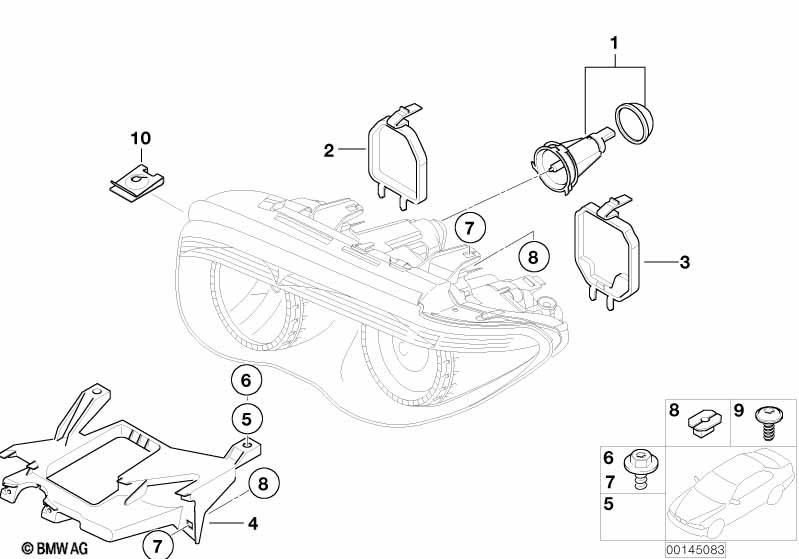

This Poj. części reflektora ksenonowego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Żarówka świateł postojowych | 2 | 63126916097 | $28.56 | Shop at ECS Tuning | |||||
| 02 | Pokrywka świateł drogowych | 2 | 63126916096 | $7.02 | Shop at ECS Tuning | |||||
| 03 | Pokrywka świateł mijania | 2 | 63126916095 | $7.75 | Shop at ECS Tuning | |||||
| 04 | Uchwyt reflektora, lewy | 1 | 03/2005 | 63126917315 | $18.37 | Shop at ECS Tuning | ||||
| 04 | Uchwyt reflektora, prawy | 1 | 03/2005 | 63126917316 | $18.37 | Shop at ECS Tuning | ||||
| 05 | Nakrętka | ST6,3-2-ZNS3 | 4 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Blachowkręt | ST6,3X13-F-Z1 | 4 | 01/2006 | 07119905807 | $0.56 | Shop at ECS Tuning | |||
| 07 | Śruba | 8 | 63126975083 | $0.43 | Shop at ECS Tuning | |||||
| 08 | Nakrętka | BLACK | 8 | 63128374670 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Śruba Torx do tworzyw sztucznych | ISA TS5X16 | 4 | 07149113701 | $0.38 | Shop at ECS Tuning |
