Ścianka zamykająca nagrzewnicy for BMW 3 Series E36 318i (1993)

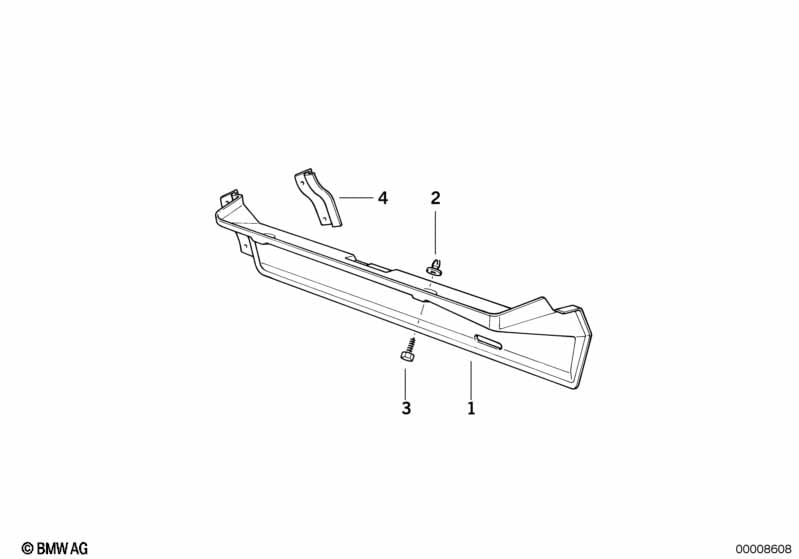

This Ścianka zamykająca nagrzewnicy technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ścianka zamykająca nagrzewnicy | 1 | 51718122360 | $46.63 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Nakrętka | ST 4.8 WEISS | 3 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 03 | Blachowkręt | ST3,9X16-C-Z2 | 3 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Wspornik panelu nagrzewnicy | 1 | 51711960628 | $1.72 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Ścianka zamykająca nagrzewnicy?
- This technical diagram illustrates the Ścianka zamykająca nagrzewnicy within the Ogrzewanie i klimatyzacja group for the 3 Series E36 318i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Ścianka zamykająca nagrzewnicy (Part #51718122360).
- Which models use the hardware listed in this Ścianka zamykająca nagrzewnicy?
- The hardware and components featured in the Ścianka zamykająca nagrzewnicy are specific to the 3 Series E36 318i produced during 1993. These technical specifications ensure that parts like the Ścianka zamykająca nagrzewnicy (51718122360) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ścianka zamykająca nagrzewnicy assembly?
- Each item in the Ścianka zamykająca nagrzewnicy corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Ścianka zamykająca nagrzewnicy by locating its position on the schematic, which then links to the official BMW part number 51718122360 for the Ogrzewanie i klimatyzacja section.
