Spręż. klim., elem. dod./napęd pasowy for BMW 7 Series E23 735i (1985)

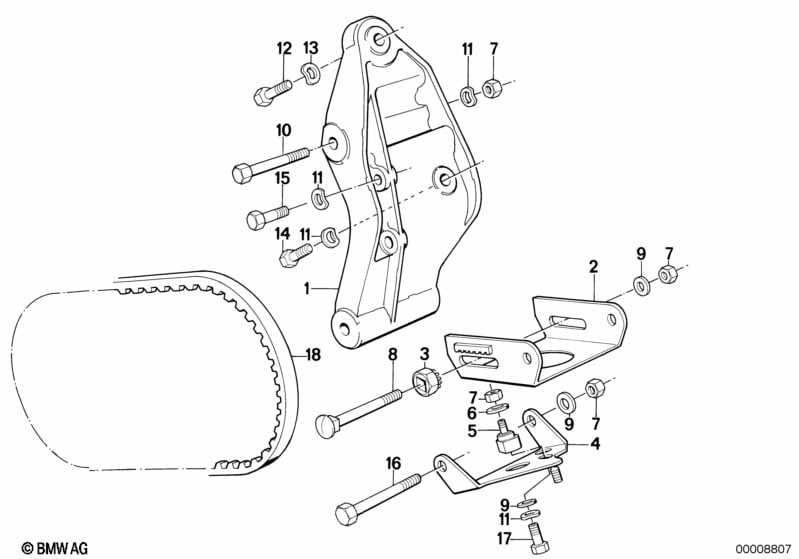

This Spręż. klim., elem. dod./napęd pasowy technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do sprężarki łopatkowej | ||||||||||
| 01 | Wspornik | 1 | 09/1984 | 64521284953 | $45.65 | Shop at ECS Tuning | ||||
| 02 | Szyna napinająca | 1 | 09/1984 | 64521289076 | $10.22 | Zakończono | Shop at ECS Tuning | |||
| 03 | Koło pasowe | 1 | 09/1984 | 12317677914 | $4.26 | Shop at ECS Tuning | ||||
| 04 | Wspornik | 1 | 09/1984 | 64521289024 | $9.37 | Shop at ECS Tuning | ||||
| 04 | Wspornik | 1 | 09/1984 | 64551716182 | $3.45 | Shop at ECS Tuning | ||||
| 05 | Wkręt bez łba | 1 | 09/1984 | 64521276622 | $13.11 | Zakończono | Shop at ECS Tuning | |||
| 06 | Podkładka | A8,4 | 1 | 09/1984 | 24111690120 | $0.42 | Shop at ECS Tuning | |||
| 07 | Nakrętka samozabezpieczająca | M8-8-ZNNI SI | 4 | 09/1984 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 08 | Śruba | M8X110 | 1 | 09/1984 | 64521284966 | $1.42 | Shop at ECS Tuning | |||
| 09 | Podkładka | 8,4X24X2-ZNS3 | 4 | 09/1984 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| 10 | Śruba sześciokątna | M8X100 | 1 | 09/1984 | 07119912570 | $1.78 | Shop at ECS Tuning | |||
| 11 | Podkładka sprężysta | 8,4X15-ZNS3 | 6 | 09/1984 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 12 | Śruba sześciokątna | M10X28 | 1 | 09/1984 | 07119913836 | $0.63 | Shop at ECS Tuning | |||
| 13 | Podkładka sprężysta | B10-ZNS3 | 1 | 09/1984 | 07119904463 | Shop at ECS Tuning | ||||
| 14 | Śruba sześciokątna | M8X22-8.8-ZNS3 | 1 | 09/1984 | 07119904040 | Shop at ECS Tuning | ||||
| 15 | Śruba sześciokątna | M8X25-8.8-ZNNIV | 2 | 09/1984 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 15 | Śruba sześciokątna | M8X25 | 2 | 09/1984 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 16 | Śruba sześciokątna | M8X110-8.8 | 1 | 09/1984 | 07119906728 | Shop at ECS Tuning | ||||
| 17 | Śruba sześciokątna | M8X16-10.9-PHR | 1 | 09/1984 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 18 | Pasek klinowy | 1 | 09/1984 | 64521711058 | Shop at ECS Tuning | |||||
| 18 | Pasek klinowy | 12,5X850 LA | 1 | 09/1984 | 64521711550 | $18.51 | Zakończono | Shop at ECS Tuning | ||
Uwagi
- Zakończono = część wycofana z produkcji.
