Części obudowy ogrzewania/klimatyzacji for BMW MINI R50 Cooper (2004)

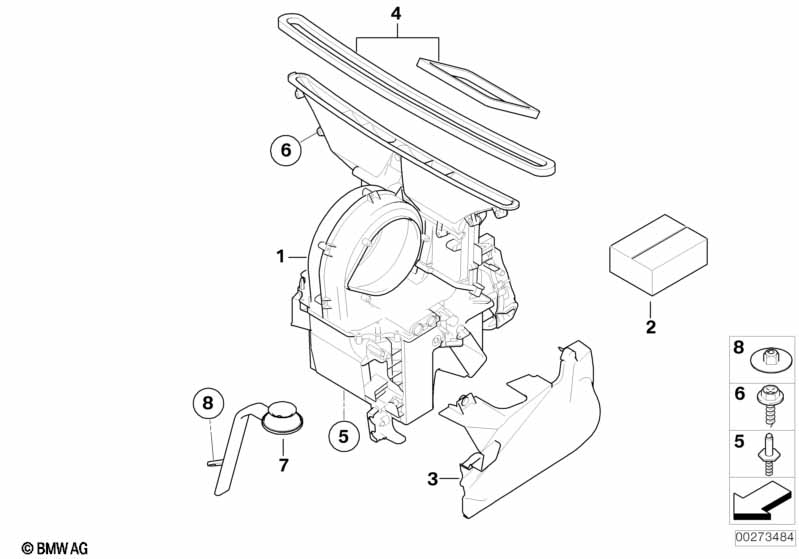

This Części obudowy ogrzewania/klimatyzacji technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obudowa nagrzewnicy/klimat., pusta | 1 | 64116944213 | $416.72 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Czujnik temperatury | 1 | 64116943847 | $33.45 | Shop at ECS Tuning | |||||
| 02 | Kpl. elem. drob./dźwigni nastawczej | 1 | 64116910916 | $66.75 | Shop at ECS Tuning | |||||
| 03 | Pokrywa nagrzewnicy | 1 | 64111497529 | $33.54 | Shop at ECS Tuning | |||||
| 04 | Kpl. uszczelek | 1 | 64221499127 | $10.79 | Shop at ECS Tuning | |||||
| 05 | Śruba | 1 | 64116911370 | $9.80 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Śruba mocująca | X | 64116918598 | $7.12 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Przewód odpływu skroplonej wody | 1 | 64111504285 | $7.64 | Shop at ECS Tuning | |||||
| 08 | Nakrętka | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Części obudowy ogrzewania/klimatyzacji?
- This technical diagram illustrates the Części obudowy ogrzewania/klimatyzacji within the Ogrzewanie i klimatyzacja group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Obudowa nagrzewnicy/klimat., pusta (Part #64116944213).
- Which models use the hardware listed in this Części obudowy ogrzewania/klimatyzacji?
- The hardware and components featured in the Części obudowy ogrzewania/klimatyzacji are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Obudowa nagrzewnicy/klimat., pusta (64116944213) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Części obudowy ogrzewania/klimatyzacji assembly?
- Each item in the Części obudowy ogrzewania/klimatyzacji corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Obudowa nagrzewnicy/klimat., pusta by locating its position on the schematic, which then links to the official BMW part number 64116944213 for the Ogrzewanie i klimatyzacja section.
