Zawór pompy węży wodnych for BMW 7 Series E65 745i (2003)

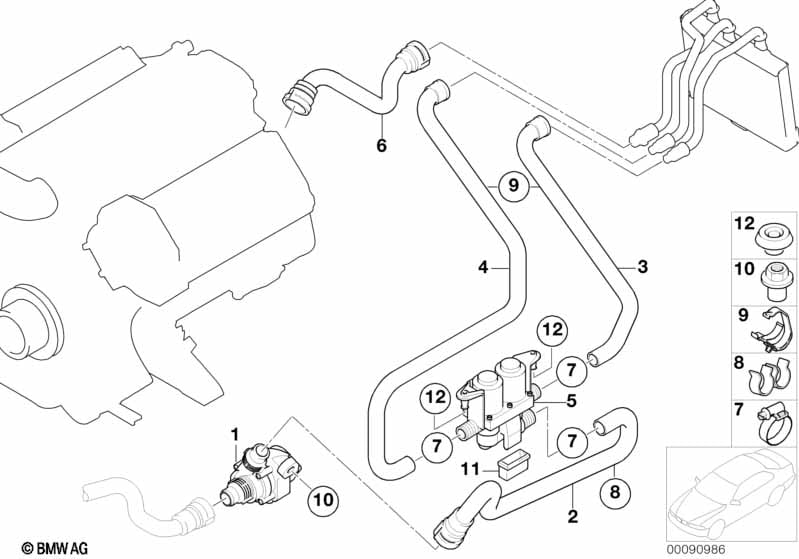

This Zawór pompy węży wodnych technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dodatkowa pompa wody | 1 | 64116922699 | $163.38 | Shop at ECS Tuning | |||||
| 02 | Przewód dod. pompa wody-zawór wodny | 1 | 64218377698 | $29.05 | Shop at ECS Tuning | |||||
| 03 | Przewód zawór wody-nagrzewnica prawa | 1 | 64218377699 | $22.93 | Shop at ECS Tuning | |||||
| 04 | Przewód zawór wody-nagrzewnica lewa | 1 | 64218377700 | $36.82 | Shop at ECS Tuning | |||||
| 05 | Zawór wodny | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 06 | Przewód elast. powrotny chłodn./silnik | 1 | 64218377701 | $29.86 | Shop at ECS Tuning | |||||
| 07 | Opaska na węże | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Uchwyt przewodu | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 09 | Uchwyt przewodu | 1 | 64118391478 | $1.42 | Shop at ECS Tuning | |||||
| 10 | Nakrętka sześciokątna | 1 | 64128363739 | $0.83 | Shop at ECS Tuning | |||||
| 11 | Łożysko gumowe | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 12 | Końcówka | 2 | 64126910076 | $1.50 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Zawór pompy węży wodnych?
- This technical diagram illustrates the Zawór pompy węży wodnych within the Ogrzewanie i klimatyzacja group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Dodatkowa pompa wody (Part #64116922699).
- Which models use the hardware listed in this Zawór pompy węży wodnych?
- The hardware and components featured in the Zawór pompy węży wodnych are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Dodatkowa pompa wody (64116922699) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zawór pompy węży wodnych assembly?
- Each item in the Zawór pompy węży wodnych corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Dodatkowa pompa wody by locating its position on the schematic, which then links to the official BMW part number 64116922699 for the Ogrzewanie i klimatyzacja section.
