Napęd nastawczy autom. klimatyzacji for BMW 7 Series E65 745i (2003)

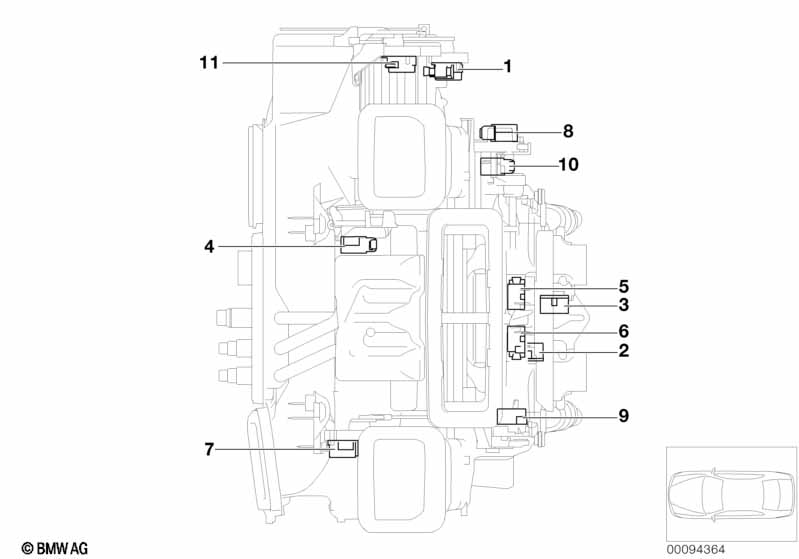

This Napęd nastawczy autom. klimatyzacji technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Siłownik przep. pow. obiegu zamkn. | 1 | 64116935073 | $82.13 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 02 | Siłownik przepustn. tył lewy | 1 | 64116935071 | $82.13 | Shop at ECS Tuning | |||||
| 03 | Siłownik przepustn. tył prawy | 1 | 64116935072 | $82.13 | Shop at ECS Tuning | |||||
| 04 | Napęd pozycj., klapka went./odmrażacz | 1 | 64116935077 | $82.13 | Shop at ECS Tuning | |||||
| 05 | Napęd nast. przep. przypodłog., prawy | 1 | 64116935079 | $82.13 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 06 | Napęd nast. przep. przypodłog., lewy | 1 | 64116935080 | $82.13 | Shop at ECS Tuning | |||||
| 07 | Napęd nast. przep. ciepł. pow., lewy | 1 | 64116935075 | $82.13 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 08 | Napęd nast. przep. ciepł. pow., prawy | 1 | 64116935083 | $82.13 | Shop at ECS Tuning | |||||
| 09 | Napęd nast. kanału zimn. powietrza, lewy | 1 | 64116935085 | $82.13 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 10 | Napęd nast. kanału zimnego pow., prawy | 1 | 64116935082 | $82.13 | Shop at ECS Tuning | |||||
| 11 | Siłownik przep. świeżego powietrza | 1 | 64116908979 | $82.13 | Shop at ECS Tuning | |||||
