Parownik / Zawór ekspansyjny for BMW 7 Series E65 745i (2003)

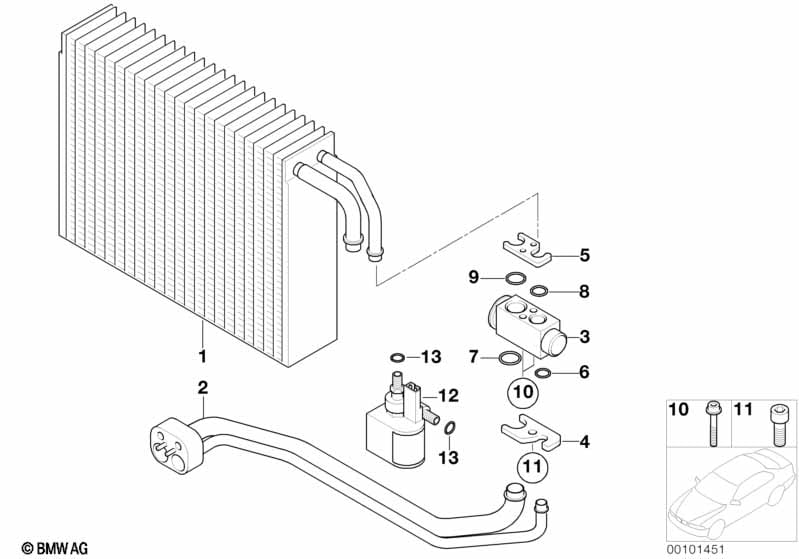

This Parownik / Zawór ekspansyjny technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parownik | 1 | 64119134628 | $595.51 | Shop at ECS Tuning | |||||
| 02 | Przewód układu chłodzenia | 1 | 64116913419 | $49.95 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja siedzenia ze skrz. chłodn. |
S523A=Tak |
|||||||||
| 02 | Kpl. przewodów | 1 | 64116913421 | Shop at ECS Tuning | ||||||
| 03 | Zawór rozprężny | 1 | 64119178314 | $145.03 | Shop at ECS Tuning | |||||
| 04 | Płyta | 1 | 64111380573 | $8.10 | Shop at ECS Tuning | |||||
| 05 | Płyta | 1 | 64111380572 | $7.27 | Shop at ECS Tuning | |||||
| 06 | Pierścień uszczelniający | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 07 | Pierścień uszczelniający | D=17,17MM | 1 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 08 | Pierścień uszczelniający | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 09 | Pierścień uszczelniający | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 10 | Śruba z podkładką | M5X35 | 2 | 64116910423 | $1.77 | Shop at ECS Tuning | ||||
| 11 | Śruba ISA | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| Dla samochodów z Klimatyzacja siedzenia ze skrz. chłodn. |
S523A=Tak |
|||||||||
| 12 | Zawór | R134A | 1 | 07/2007 | 64518390990 | $170.32 | Shop at ECS Tuning | |||
| 13 | Pierścień uszczelniający | 2 | 64508390600 | $0.84 | Shop at ECS Tuning | |||||
