Wentylator sklaplacza klimatyzacji for BMW 7 Series E65 745i (2003)

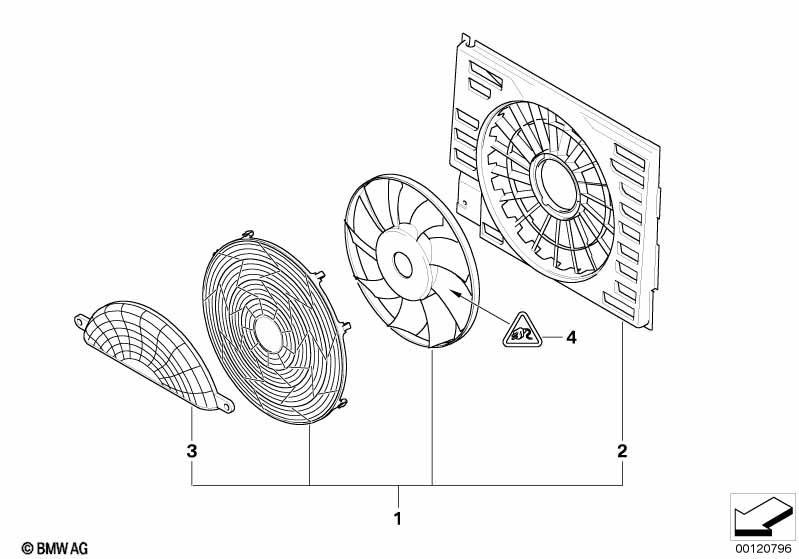

This Wentylator sklaplacza klimatyzacji technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Wersja krajowa Golf lub Wersja krajowa Ameryka Południowa |
L822A=Tak L824A=Tak |
|||||||||
| 01 | Rama mocująca z wentylatorem | 1 | 07/2007 | 64546921379 | $535.52 | Shop at ECS Tuning | ||||
| 02 | Ramka dociskowa | 1 | 64546912417 | $124.39 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Kratka ochronna wentylatora dodatkowego | 1 | 64546911794 | $39.72 | Shop at ECS Tuning | |||||
| 04 | Obudowa gniazda | 4 POL. | 1 | 61136900536 | $4.20 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Jack SLK 2.8 ELA with cable | 0,2- 0,5MM²/AG | X | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Tulejka wtykowa z przewodem LSK8 | 10MM² ELA 500MM | X | 12520144161 | $9.53 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
