Elem. poj. systemu dźwięk. for BMW 3 Series E30 M3 (1991)

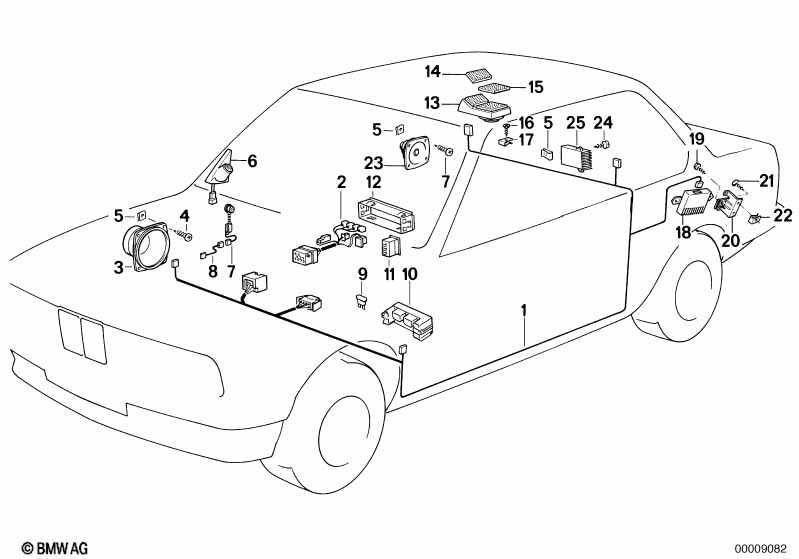

This Elem. poj. systemu dźwięk. technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zestaw kabli | SOUND SYSTEM | 1 | 09/1989 | 61121394215 | $130.75 | Zakończono | Shop at ECS Tuning | ||
| 03 | Głośnik | 4 OHM/25/40W | 2 | 09/1989 | 65131386546 | $88.29 | Shop at ECS Tuning | |||
| 04 | Wkręt samogwintujący | ST4,2X16-ABW | 6 | 09/1989 | 07119906749 | $0.11 | Shop at ECS Tuning | |||
| 05 | Nakrętka | ST 4.8 WEISS | X | 09/1989 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 06 | Głośnik lewy | SOUND SYSTEM | 1 | 09/1989 | 65131377687 | $70.68 | Shop at ECS Tuning | |||
| 06 | Głośnik prawy | SOUND SYSTEM | 1 | 09/1989 | 65131377688 | $70.68 | Shop at ECS Tuning | |||
| 07 | Przewody elektr. drzwi przednich | SOUND SYSTEM | 2 | 09/1989 | 61129058654 | $66.12 | Zakończono | Shop at ECS Tuning | ||
| 08 | Zestaw kabli | SOUND SYSTEM | 2 | 09/1989 | 61121375798 | $16.54 | Zakończono | Shop at ECS Tuning | ||
| 09 | Bezpiecznik jasnobrązowy | 5A | 1 | 09/1989 | 61131372523 | Shop at ECS Tuning | ||||
| 09 | Bezpiecznik | 5A | 1 | 09/1989 | 61131386626 | $0.75 | Zakończono | Shop at ECS Tuning | ||
| 10 | Obudowa wtyczki | 1 | 09/1989 | 62111372218 | $7.86 | Zakończono | Shop at ECS Tuning | |||
| 11 | Regulator wyciszania z wtyczką okrągła | HIFI/SOUND SYST | 1 | 09/1989 | 65121379325 | $44.65 | Shop at ECS Tuning | |||
| 12 | Rama | 1 | 09/1989 | 65121375737 | $13.10 | Shop at ECS Tuning | ||||
| 23 | Głośnik | 2 | 09/1989 | 65131386541 | Shop at ECS Tuning | |||||
| 24 | Wkręt samogwintujący | ST4,2X16-Z2 | 2 | 09/1989 | 07119907948 | $0.18 | Shop at ECS Tuning | |||
| 25 | Wzmacniacz | SOUND SYSTEM | 1 | 09/1989 | 65121375983 | $242.17 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Elem. poj. systemu dźwięk.?
- This technical diagram illustrates the Elem. poj. systemu dźwięk. within the Audio, nawigacja, ukł. elektroniczne group for the 3 Series E30 M3 produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Zestaw kabli (Part #61121394215).
- Which models use the hardware listed in this Elem. poj. systemu dźwięk.?
- The hardware and components featured in the Elem. poj. systemu dźwięk. are specific to the 3 Series E30 M3 produced during 1991. These technical specifications ensure that parts like the Zestaw kabli (61121394215) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elem. poj. systemu dźwięk. assembly?
- Each item in the Elem. poj. systemu dźwięk. corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Zestaw kabli by locating its position on the schematic, which then links to the official BMW part number 61121394215 for the Audio, nawigacja, ukł. elektroniczne section.
