Radio Boost MD for BMW MINI R50 Cooper (2004)

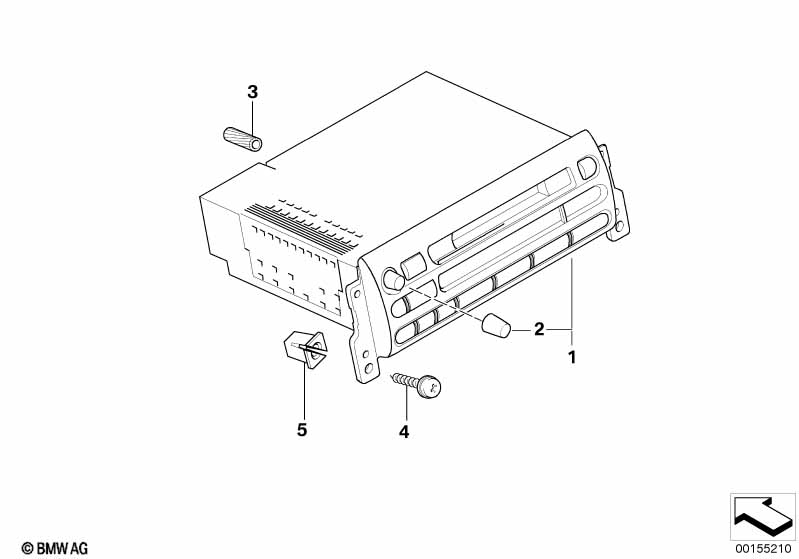

This Radio Boost MD technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Radio Boost MD | 1 | 09/2005 | 65126961278 | $792.18 | Zakończono | Shop at ECS Tuning | |||
| 01 | RP REMAN Radio Boost MD | 1 | 09/2006 | 65126961237 | $860.34 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z System nawigacji Professional i System HiFi Harman Kardon i Instalacja pod montaż tel. uniwers. |
S609A=Tak S674A=Tak S640A=Tak |
|||||||||
| 01 | AT-Radio Boost MD | 1 | 09/2003 | 09/2005 | 65126961278 | $792.18 | Zakończono | Shop at ECS Tuning | ||
| 01 | RP REMAN Radio Boost MD | 1 | 09/2003 | 09/2006 | 65126961237 | $860.34 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z System nawigacji Professional i System HiFi Harman Kardon i Instalacja pod montaż tel. uniwers. |
S609A=Tak S674A=Tak S640A=Nie |
|||||||||
| 01 | AT-Radio Boost MD | 1 | 09/2003 | 09/2005 | 65126961278 | $792.18 | Zakończono | Shop at ECS Tuning | ||
| 01 | RP REMAN Radio Boost MD | 1 | 09/2003 | 09/2006 | 65126961237 | $860.34 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z System nawigacji Professional i System HiFi Harman Kardon i Instalacja pod montaż tel. uniwers. |
S609A=Nie S674A=Tak S640A=Tak |
|||||||||
| 01 | AT-Radio Boost MD | 1 | 09/2003 | 09/2005 | 65126961278 | $792.18 | Zakończono | Shop at ECS Tuning | ||
| 01 | RP REMAN Radio Boost MD | 1 | 09/2003 | 09/2006 | 65126961237 | $860.34 | Zakończono | Shop at ECS Tuning | ||
| 02 | Przycisk | 1 | 09/2006 | 65129127000 | $9.11 | Shop at ECS Tuning | ||||
| 03 | Kołek mocowania radia | 1 | 09/2006 | 65106913427 | $1.00 | Shop at ECS Tuning | ||||
| 04 | Wkręt samogwintujący | ST4,2X19 | 4 | 09/2006 | 51431874616 | $0.39 | Shop at ECS Tuning | |||
| 04 | Śruba soczewkowa | K40X20-ZNFE SW | 4 | 09/2006 | 07147119149 | $0.49 | Shop at ECS Tuning | |||
| 05 | Nakrętka | 2 | 09/2006 | 46631453058 | $0.75 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
