Autoalarm for BMW 7 Series E32 740i (1992)

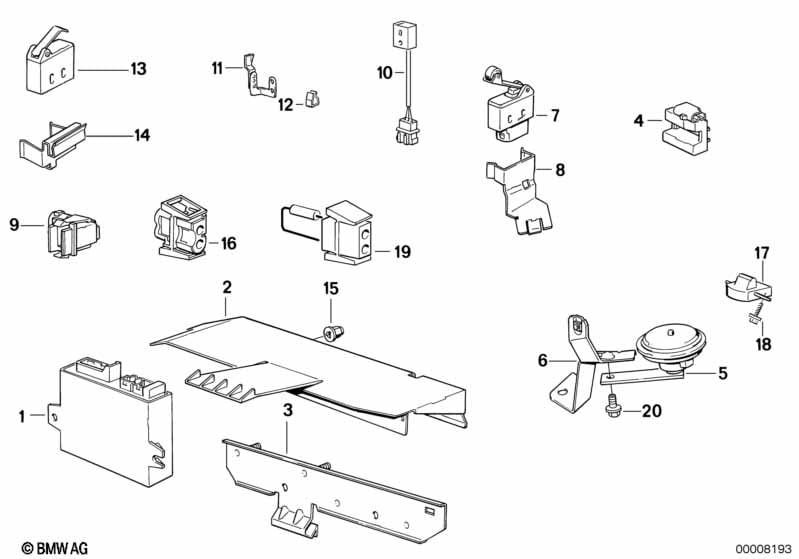

This Autoalarm technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Wersja krajowa Japonia |
L807A=Tak |
|||||||||
| 01 | Sterownik ultradźw. DWA niekodowany | DWA 4 | 1 | 65758366229 | $312.24 | Shop at ECS Tuning | ||||
| Dla samochodów z Ochrona wnętrza |
=Tak |
|||||||||
| 01 | Sterownik ultradźw. DWA niekodowany | DWA 4 | 1 | 65758366229 | $312.24 | Shop at ECS Tuning | ||||
| 02 | Osłona | 1 | 09/1990 | 61218350587 | $11.70 | Zakończono | Shop at ECS Tuning | |||
| 03 | Uchwyt sterownika | 1 | 61351379124 | $4.35 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Styk radia | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 05 | Syrena alarmowa | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 06 | Uchwyt sygnału dźwiękowego | 1 | 65811378029 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Mikroprzełącznik | 2 | 65758350549 | $30.38 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Czujnik/włącznik | 1 | 09/1987 | 61311388037 | $12.72 | Zakończono | Shop at ECS Tuning | |||
| 10 | Mikroprzełącznik | 1 | 61318350066 | $28.18 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Styk sprężynowy | 1 | 61311388390 | $3.78 | Shop at ECS Tuning | |||||
| 12 | Klamra mikroprzełącznika | 1 | 61311374027 | $0.30 | Shop at ECS Tuning | |||||
| 13 | Mikroprzełącznik | 1 | 65751391850 | $50.14 | Zakończono | Shop at ECS Tuning | ||||
| 14 | Uchwyt mikroprzełącznika | 1 | 65711378069 | $2.88 | Shop at ECS Tuning | |||||
| 15 | Nakrętka plast. sworznia z gwintem zgr. | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja krajowa Szwajcaria |
L804A=Tak |
|||||||||
| 16 | Obudowa wtyczki | 1 | 61131378164 | $4.23 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja krajowa Japonia |
L807A=Tak |
|||||||||
| 16 | Obudowa wtyczki | 1 | 61131378164 | $4.23 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Sygnalizator | 1 | 65751378785 | $98.95 | Zakończono | Shop at ECS Tuning | ||||
| pasuje tylko do podczerwieni | ||||||||||
| 17 | Sygnalizator | 1 | 66101379255 | $158.47 | Shop at ECS Tuning | |||||
| 18 | Śruba z podkładką | L=12MM | 1 | 51261377144 | $0.39 | Shop at ECS Tuning | ||||
| 19 | Łącznik | 1 | 61121382630 | $7.03 | Zakończono | Shop at ECS Tuning | ||||
| 20 | Śruba z podkładką | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
