Elem. elektr. poduszki powietrznej for BMW 7 Series E65 745i (2003)

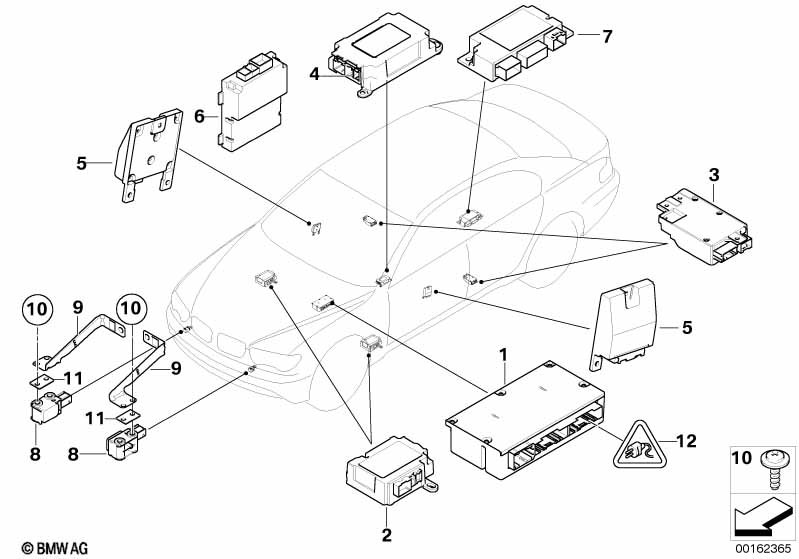

This Elem. elektr. poduszki powietrznej technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moduł informacyjny bezpieczeństwa | 1 | 09/2002 | 03/2004 | 65776949899 | $1074.12 | +podst | Shop at ECS Tuning | ||
| 02 | Czujnik słupka A lewy | 1 | 03/2004 | 65776949909 | $253.57 | Shop at ECS Tuning | ||||
| 02 | Czujnik słupka A prawy | 1 | 03/2004 | 65776949908 | $253.57 | Shop at ECS Tuning | ||||
| 03 | Czujnik słupka B prawy | 1 | 03/2004 | 65776949910 | $288.32 | Shop at ECS Tuning | ||||
| 03 | Czujnik słupka B lewy | 1 | 03/2004 | 65776949911 | $222.88 | Shop at ECS Tuning | ||||
| 04 | Czujnik centrum pojazdu | 1 | 03/2004 | 65776949901 | $215.73 | Shop at ECS Tuning | ||||
| 05 | Czujnik drzwi przednich lewych | 1 | 03/2004 | 65776970905 | $215.73 | Shop at ECS Tuning | ||||
| 05 | Czujnik drzwi przednich prawych | 1 | 03/2004 | 65776970907 | $215.73 | Shop at ECS Tuning | ||||
| 06 | Czujnik fotela kierowcy | 1 | 03/2004 | 65776949905 | $222.88 | Shop at ECS Tuning | ||||
| 06 | Czujnik fotela pasażera | 1 | 03/2004 | 65776949904 | $222.88 | +podst | Shop at ECS Tuning | |||
| 07 | Czujnik fotela tylnego | 1 | 03/2004 | 65776949906 | $359.90 | +podst | Shop at ECS Tuning | |||
| 11 | Podkładka | 2 | 65776951119 | $6.24 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
