Elem. poj. sys. HiFi System drzwi przed for BMW 7 Series E65 745i (2003)

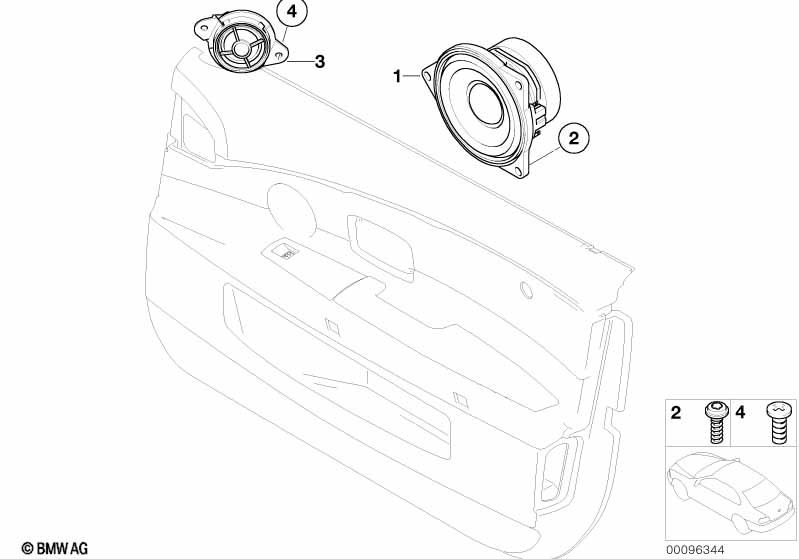

This Elem. poj. sys. HiFi System drzwi przed technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Głośnik średniotonowy Hifi | 2 | 65139143153 | $46.35 | Shop at ECS Tuning | |||||
| 02 | Śruba torx | 6 | 07149159885 | $0.70 | Shop at ECS Tuning | |||||
| 02 | Śruba soczewkowa | 6 | 51169151916 | $0.47 | Shop at ECS Tuning | |||||
| 03 | Głośnik tonów wysokich stereo/HiFi | 2 | 65136901317 | $53.18 | Shop at ECS Tuning | |||||
| 04 | Śruba soczewkowa | 2 | 51168225615 | $4.78 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Elem. poj. sys. HiFi System drzwi przed?
- This technical diagram illustrates the Elem. poj. sys. HiFi System drzwi przed within the Audio, nawigacja, ukł. elektroniczne group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Głośnik średniotonowy Hifi (Part #65139143153).
- Which models use the hardware listed in this Elem. poj. sys. HiFi System drzwi przed?
- The hardware and components featured in the Elem. poj. sys. HiFi System drzwi przed are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Głośnik średniotonowy Hifi (65139143153) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elem. poj. sys. HiFi System drzwi przed assembly?
- Each item in the Elem. poj. sys. HiFi System drzwi przed corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Głośnik średniotonowy Hifi by locating its position on the schematic, which then links to the official BMW part number 65139143153 for the Audio, nawigacja, ukł. elektroniczne section.
