Elem. poj. basu centralnego for BMW 7 Series E65 745i (2003)

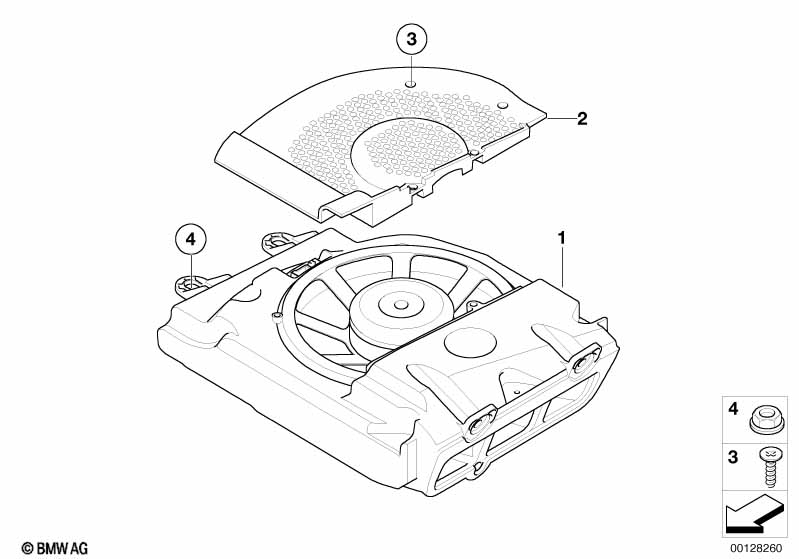

This Elem. poj. basu centralnego technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z System HiFi Professional DSP |
S677A=Tak |
|||||||||
| 01 | Głośnik niskotonowy centralny lewy | TOP-HIFI-SYSTEM | 1 | 65139143137 | $614.32 | Shop at ECS Tuning | ||||
| 01 | Głośnik niskotonowy centralny prawy | TOP-HIFI-SYSTEM | 1 | 65139143138 | $614.32 | Shop at ECS Tuning | ||||
| 02 | Osłona centr. głośnika niskot., lewa | 1 | 65136907655 | $17.85 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Osłona centr. głośnika niskot., prawa | 1 | 65136907656 | $17.85 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Śruba | 10 | 07149156622 | $0.10 | Shop at ECS Tuning | |||||
| 04 | Nakrętka sześciokątna | BM6-8-ZNFE SW | 8 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
