Elem. poj. sys. Top-HiFi podł. schowka for BMW 7 Series E65 745i (2003)

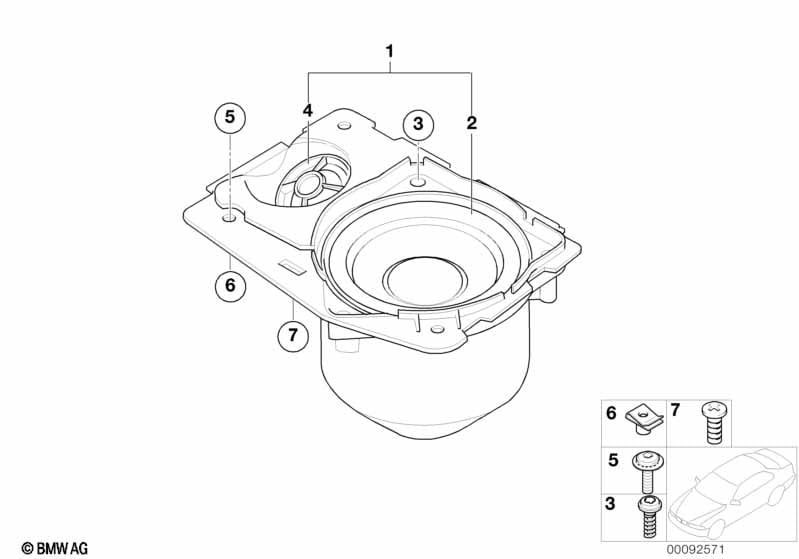

This Elem. poj. sys. Top-HiFi podł. schowka technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skrzynka głośników lewa | TOP-HIFI-SYSTEM | 1 | 65139147000 | $169.22 | Shop at ECS Tuning | ||||
| 01 | Skrzynka głośników prawa | TOP-HIFI-SYSTEM | 1 | 65139147003 | $169.22 | Zakończono | Shop at ECS Tuning | |||
| 02 | Głośnik średniotonowy Top-Hifi-System | 2 | 65139144975 | $86.73 | Shop at ECS Tuning | |||||
| 03 | Śruba torx | 6 | 07149159885 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Śruba soczewkowa | 6 | 51169151916 | $0.47 | Shop at ECS Tuning | |||||
| 04 | Głośnik tonów wysokich system Top-Hifi | 2 | 65136907639 | $79.17 | Shop at ECS Tuning | |||||
| 05 | Śruba | ST 4.8X13 | 6 | 07149156623 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Nakrętka | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Śruba soczewkowa | 2 | 51168225615 | $4.78 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Elem. poj. sys. Top-HiFi podł. schowka?
- This technical diagram illustrates the Elem. poj. sys. Top-HiFi podł. schowka within the Audio, nawigacja, ukł. elektroniczne group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Skrzynka głośników lewa (Part #65139147000).
- Which models use the hardware listed in this Elem. poj. sys. Top-HiFi podł. schowka?
- The hardware and components featured in the Elem. poj. sys. Top-HiFi podł. schowka are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Skrzynka głośników lewa (65139147000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elem. poj. sys. Top-HiFi podł. schowka assembly?
- Each item in the Elem. poj. sys. Top-HiFi podł. schowka corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Skrzynka głośników lewa by locating its position on the schematic, which then links to the official BMW part number 65139147000 for the Audio, nawigacja, ukł. elektroniczne section.
