Moduł słuchawkowy for BMW 7 Series E65 745i (2003)

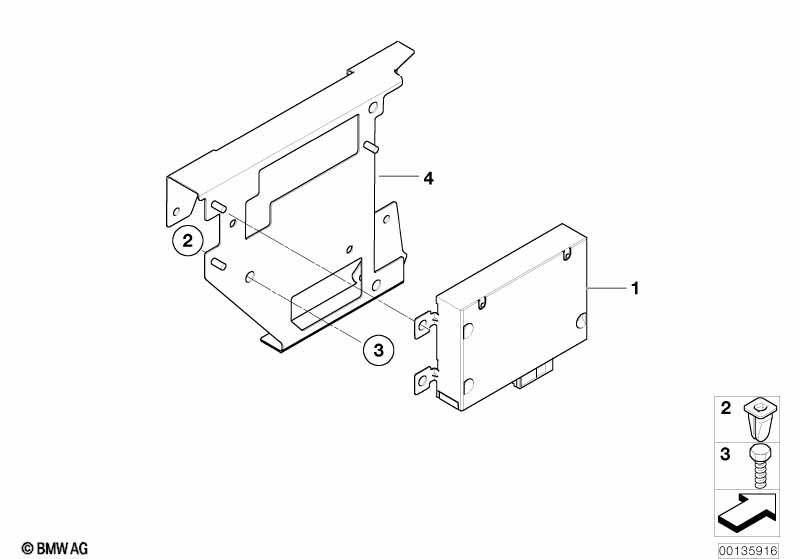

This Moduł słuchawkowy technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Ekran siedzenia tylnego |
S603A=Tak |
|||||||||
| 01 | Moduł słuchawkowy | 1 | 65126967245 | $510.57 | Shop at ECS Tuning | |||||
| 02 | Nakrętka | ST 4.8 | 3 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Blachowkręt | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Uchwyt modułu słuchawek | 1 | 84136907376 | $10.01 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Moduł słuchawkowy?
- This technical diagram illustrates the Moduł słuchawkowy within the Audio, nawigacja, ukł. elektroniczne group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Moduł słuchawkowy (Part #65126967245).
- Which models use the hardware listed in this Moduł słuchawkowy?
- The hardware and components featured in the Moduł słuchawkowy are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Moduł słuchawkowy (65126967245) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moduł słuchawkowy assembly?
- Each item in the Moduł słuchawkowy corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Moduł słuchawkowy by locating its position on the schematic, which then links to the official BMW part number 65126967245 for the Audio, nawigacja, ukł. elektroniczne section.
