Kontroler systemów audio CD for BMW 7 Series E65 745i (2003)

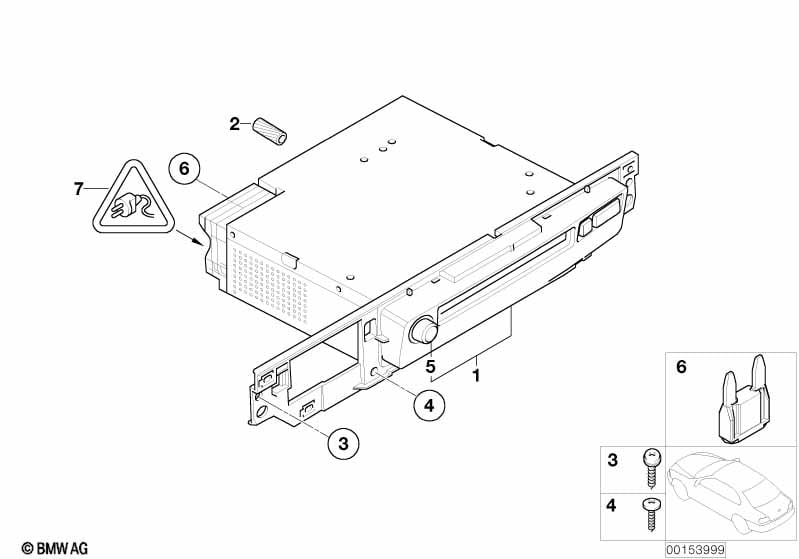

This Kontroler systemów audio CD technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | U w a g a ! Stara uszkodzona część musi zostać oddana do obiegu zwrotu części zamiennych. Informacja o produkcie musi być bezwzględnie przestrzegana PARTS_051_09_14! UWAGA! W przypadku kradzieży Headunit należy uzgodnić z ubezpieczycielem, czy część AT może zostać zamontowana i uwzględniona wraz z odpowiednim depozytem ryczałtowym podczas dochodzenia roszczeń. Gdy ubezpieczyciel domaga się użycia nowej części, należy pobrać odpowiedni numer części z elektronicznego katalogu części . |
|||||||||
| 01 | RP kontroler systemu audio CD | 1 | 03/2005 | 65126977634 | $1255.78 | Shop at ECS Tuning | ||||
| 01 | RP REMAN kontroler systemu audio CD | 1 | 03/2005 | 65126985566 | $962.60 | Shop at ECS Tuning | ||||
| Dla samochodów z Ekran siedzenia tylnego |
S603A=Tak |
|||||||||
| 01 | RP kontroler systemu audio CD | 1 | 09/2002 | 03/2005 | 65126977634 | $1255.78 | Shop at ECS Tuning | |||
| 01 | RP REMAN kontroler systemu audio CD | 1 | 09/2002 | 03/2005 | 65126985566 | $962.60 | Shop at ECS Tuning | |||
| 02 | Kołek mocowania radia | 1 | 65128370535 | $0.94 | Shop at ECS Tuning | |||||
| 03 | Blachowkręt | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Śruba soczewkowa | ST3,5 X 10 | 1 | 65127067908 | $0.57 | Zakończono | Shop at ECS Tuning | |||
| 05 | Przycisk | 1 | 65126923320 | $7.97 | Shop at ECS Tuning | |||||
| 06 | Bezpiecznik MINI niebieski | 15A | 1 | 61136917404 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Obudowa wtyczki | 16 POL. | 1 | 61138384580 | $3.78 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | 8 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | 8 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Zest. napr. obudowy gniazda | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| -- | Obudowa gniazda | 8 POL. | 2 | 61136905788 | $1.52 | Shop at ECS Tuning | ||||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 0,5-1,0 MM² | 24 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Bezpiecznik | 1 | 61138384567 | $0.92 | Shop at ECS Tuning | |||||
| -- | Pokrywka | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Kontroler systemów audio CD?
- This technical diagram illustrates the Kontroler systemów audio CD within the Audio, nawigacja, ukł. elektroniczne group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the RP kontroler systemu audio CD (Part #65126977634).
- Which models use the hardware listed in this Kontroler systemów audio CD?
- The hardware and components featured in the Kontroler systemów audio CD are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the RP kontroler systemu audio CD (65126977634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kontroler systemów audio CD assembly?
- Each item in the Kontroler systemów audio CD corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the RP kontroler systemu audio CD by locating its position on the schematic, which then links to the official BMW part number 65126977634 for the Audio, nawigacja, ukł. elektroniczne section.
