System nawigacji for BMW 7 Series E65 745i (2003)

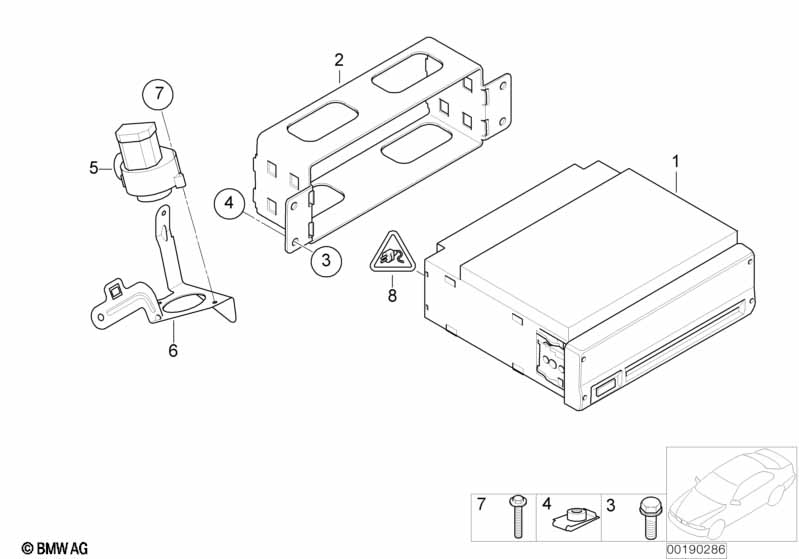

This System nawigacji technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Komputer nawigacji DVD | 1 | 03/2003 | 03/2005 | 65906961859 | $2672.90 | Shop at ECS Tuning | |||
| 02 | Uchwyt komputera nawigacji | 1 | 65908385498 | $10.54 | Shop at ECS Tuning | |||||
| 03 | Śruba sześciokątna | M5X14-8.8-ZNNIV | 1 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Nakrętka | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Wentylator | 1 | 65126932274 | $71.03 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Śruba | 2 | 07119904264 | $0.29 | Shop at ECS Tuning | |||||
| 08 | Obudowa gniazda | 20 POL. | 1 | 61136901848 | $3.20 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Pokrywka | 1 | 61136905196 | $3.92 | Shop at ECS Tuning | |||||
| -- | Obudowa złącza światłowodu | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i System nawigacji?
- This technical diagram illustrates the System nawigacji within the Audio, nawigacja, ukł. elektroniczne group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Komputer nawigacji DVD (Part #65906961859).
- Which models use the hardware listed in this System nawigacji?
- The hardware and components featured in the System nawigacji are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Komputer nawigacji DVD (65906961859) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the System nawigacji assembly?
- Each item in the System nawigacji corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Komputer nawigacji DVD by locating its position on the schematic, which then links to the official BMW part number 65906961859 for the Audio, nawigacja, ukł. elektroniczne section.
