Zmieniarka DVD / Uchwyt for BMW 7 Series E65 745i (2003)

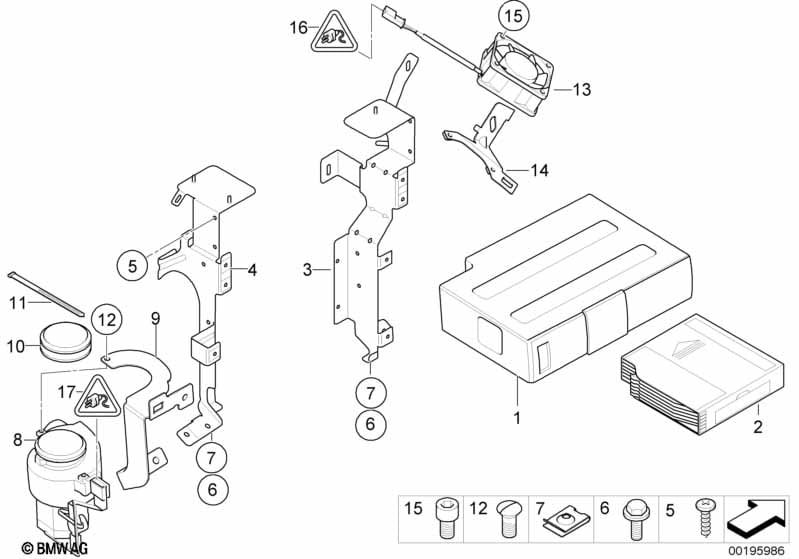

This Zmieniarka DVD / Uchwyt technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Zmieniarka DVD |
S696A=Tak |
|||||||||
| 01 | RP REMAN zmieniarka DVD | 1 | 65126949931 | $1085.50 | Shop at ECS Tuning | |||||
| 02 | Magazynek płyt do zmieniarki DVD | 1 | 65126913391 | $53.98 | Shop at ECS Tuning | |||||
| Dla samochodów z Zmieniarka DVD |
S696A=Nie |
|||||||||
| 03 | Wspornik główny przedni | 1 | 65126902262 | $18.02 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Zmieniarka DVD |
S696A=Tak |
|||||||||
| 03 | Wspornik główny przedni | 1 | 09/2002 | 65106929955 | $40.92 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Zmieniarka DVD |
S696A=Nie |
|||||||||
| 04 | Wspornik główny tylny | 1 | 65126902265 | $18.02 | Shop at ECS Tuning | |||||
| Dla samochodów z Zmieniarka DVD |
S696A=Tak |
|||||||||
| 04 | Wspornik główny tylny | 1 | 09/2002 | 65106929956 | $35.38 | Zakończono | Shop at ECS Tuning | |||
| 05 | Śruba z łbem wpuszczanym | M4X6 4.8 H ZNFE | 4 | 03/2007 | 07119901061 | $0.40 | Shop at ECS Tuning | |||
| 05 | Śruba z łbem wpuszczanym | M4X6 | 4 | 07119904307 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Śruba sześciokątna | M5X14 | 5 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Nakrętka | M5 | 5 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 08 | Wentylator | 1 | 65126932273 | $63.61 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Uchwyt wentylatora | 1 | 65126930904 | $8.84 | Shop at ECS Tuning | |||||
| 10 | Mata filtracyjna | 1 | 65126932641 | $2.39 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Opaska kablowa | L=200MM/B=4,6MM | 1 | 61138383722 | $0.08 | Shop at ECS Tuning | ||||
| 12 | Śruba | 2 | 07119904264 | $0.29 | Shop at ECS Tuning | |||||
| 13 | Wentylator | 1 | 09/2006 | 65126920409 | $28.20 | Shop at ECS Tuning | ||||
| 13 | Wentylator | 1 | 09/2006 | 65156983075 | $35.85 | +podst | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Uchwyt wentylatora | 1 | 09/2006 | 65156988748 | $9.26 | Shop at ECS Tuning | ||||
| 14 | Uchwyt wentylatora | 1 | 03/2006 | 65156988748 | $9.26 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Wentylator | 1 | 03/2006 | 65156983075 | $35.85 | +podst | Shop at ECS Tuning | |||
| 15 | Śruba imbusowa | M4X30-A2-70 | 2 | 03/2007 | 07129902610 | $0.82 | Shop at ECS Tuning | |||
| 15 | Śruba imbusowa | M4X30 | 2 | 07119906321 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Uniwers. obudowa gniazda niekod. | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS | 0.2-0.35 MM²/SN | 3 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| 17 | Uniwersalna obudowa styków niekodowana | 4 POL. | 1 | 61136925611 | $1.20 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk kontaktowy MQS | 0,2-0,35MM²/SN | 4 | 61131383672 | $0.42 | Shop at ECS Tuning | ||||
| -- | Pokrywka | 1 | 61131387182 | $0.72 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
