El. poj. tel. wielopasmowego/anteny GPS for BMW MINI R50 Cooper (2004)

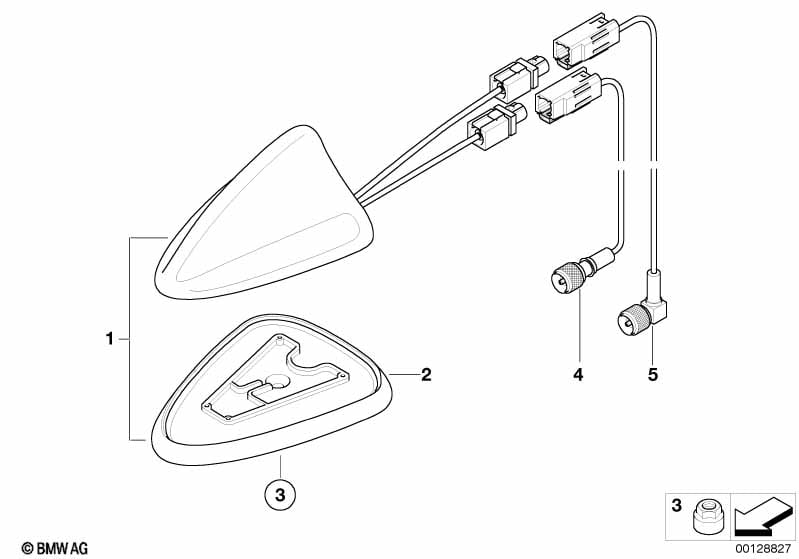

This El. poj. tel. wielopasmowego/anteny GPS technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.

El. poj. tel. wielopasmowego/anteny GPS
Nr. Opis Uzupełnienie Ilość  Od   Do  Numer części Cena Uwagi
Dla samochodów z
System nawigacji Professional

S609A=Tak
01 Wielopasmowa antena telefoniczna TEL/UMTS/GPS 1 07/2004 84506918548 $177.73 Shop at ECS Tuning
Dla samochodów z
Instalacja pod montaż tel. uniwers.

S640A=Tak
01 Wielopasmowa antena telefoniczna TEL/UMTS 1 07/2004 84506918545 Shop at ECS Tuning
02 Uszczelka wielopasm. anteny telefon. 1 07/2004 84506918547 $8.58 Shop at ECS Tuning
03 Nakrętka mocująca 1 07/2004 65206918546 $4.64 Shop at ECS Tuning
Dla samochodów z
Instalacja pod montaż tel. uniwers.

S640A=Tak
04 Przewód anteny telefonu 5245MM 1 07/2004 61126921325 $62.13 Zakończono Shop at ECS Tuning
Dla samochodów z
System nawigacji Professional

S609A=Tak
05 Przew. anteny odb. GPS/antena GPS 3575MM 1 09/2002 07/2004 61116921935 $44.92 Shop at ECS Tuning
Uwagi
  • Zakończono = część wycofana z produkcji.

See Also

Frequently Asked Questions

What assembly is shown in the BMW MINI R50 Cooper El. poj. tel. wielopasmowego/anteny GPS?
This technical diagram illustrates the El. poj. tel. wielopasmowego/anteny GPS within the Audio, nawigacja, ukł. elektroniczne group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Wielopasmowa antena telefoniczna (Part #84506918548).
Which models use the hardware listed in this El. poj. tel. wielopasmowego/anteny GPS?
The hardware and components featured in the El. poj. tel. wielopasmowego/anteny GPS are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Wielopasmowa antena telefoniczna (84506918548) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the El. poj. tel. wielopasmowego/anteny GPS assembly?
Each item in the El. poj. tel. wielopasmowego/anteny GPS corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Wielopasmowa antena telefoniczna by locating its position on the schematic, which then links to the official BMW part number 84506918548 for the Audio, nawigacja, ukł. elektroniczne section.
