Kontroler for BMW 7 Series E65 745i (2003)

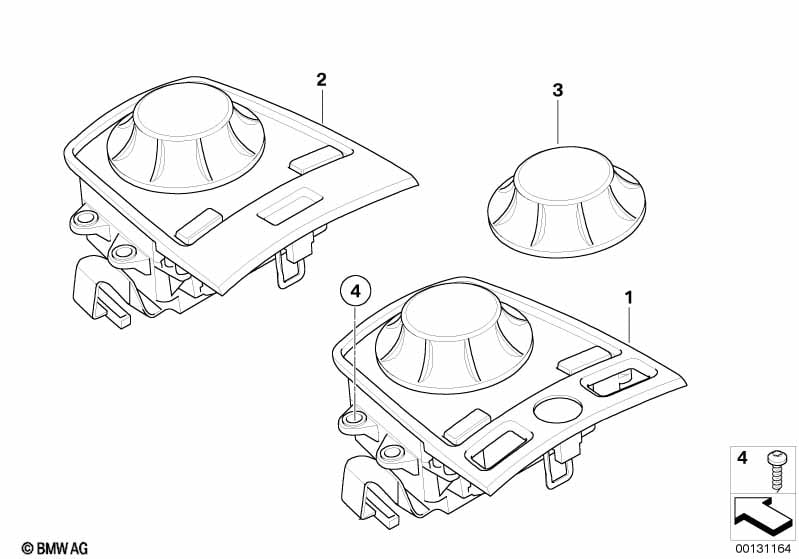

This Kontroler technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW zaleca jako zabezpieczenie przed kradzieżą Security-Kit TNR 2 464 228. |
|||||||||
| 01 | Kontroler | 1 | 10/2003 | 03/2005 | 61316932716 | $489.88 | Zakończono, +podst | Shop at ECS Tuning | ||
| Dla samochodów z Ekran siedzenia tylnego |
S603A=Tak |
|||||||||
| 02 | Kontroler tylny | 1 | 10/2003 | 03/2005 | 61316932717 | $489.88 | Zakończono, +podst | Shop at ECS Tuning | ||
| 03 | Przycisk do kontrolera | 1 | 10/2003 | 03/2005 | 61316920755 | $30.05 | +podst | Shop at ECS Tuning | ||
| 04 | Śruba | 4X14MM | 4 | 10/2003 | 03/2005 | 07146963839 | $0.20 | Shop at ECS Tuning | ||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
