Wzmacniacz / Uchwyt systemu HiFi for BMW MINI Clubman R55 Cooper (2006)

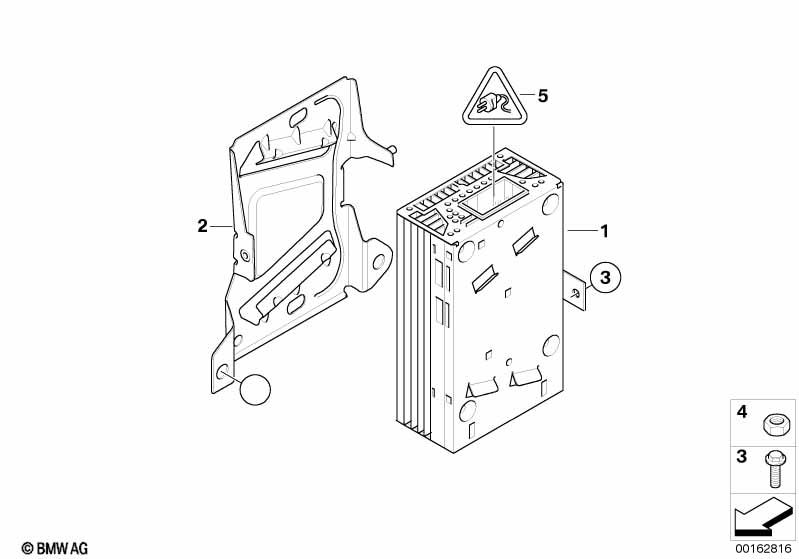

This Wzmacniacz / Uchwyt systemu HiFi technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z System HiFi Harman Kardon |
S674A=Tak |
|||||||||
| 01 | Wzmacniacz systemu Hifi Harman Kardon | 1 | 65129388956 | Shop at ECS Tuning | ||||||
| Dla samochodów z System głośników HiFi MINI |
S6FDA=Tak |
|||||||||
| 01 | Wzmacniacz systemu Hifi | 1 | 09/2009 | 65123454362 | $460.85 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z System HiFi Harman Kardon lub System głośników HiFi MINI |
S674A=Tak S6FDA=Tak |
|||||||||
| 02 | Uchwyt wzmacniacza systemu Hifi | 1 | 65122755095 | $12.43 | Shop at ECS Tuning | |||||
| 03 | Śruba sześciokątna | M5X14 | 1 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Nakrętka sześciokątna | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman R55 Cooper Wzmacniacz / Uchwyt systemu HiFi?
- This technical diagram illustrates the Wzmacniacz / Uchwyt systemu HiFi within the Audio, nawigacja, ukł. elektroniczne group for the MINI Clubman R55 Cooper produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Wzmacniacz systemu Hifi Harman Kardon (Part #65129388956).
- Which models use the hardware listed in this Wzmacniacz / Uchwyt systemu HiFi?
- The hardware and components featured in the Wzmacniacz / Uchwyt systemu HiFi are specific to the MINI Clubman R55 Cooper produced during 2006. These technical specifications ensure that parts like the Wzmacniacz systemu Hifi Harman Kardon (65129388956) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wzmacniacz / Uchwyt systemu HiFi assembly?
- Each item in the Wzmacniacz / Uchwyt systemu HiFi corresponds to the numbered list below the illustration. For the MINI Clubman R55 Cooper, you can identify the Wzmacniacz systemu Hifi Harman Kardon by locating its position on the schematic, which then links to the official BMW part number 65129388956 for the Audio, nawigacja, ukł. elektroniczne section.
