Czujnik ACC for BMW 7 Series E65 745i (2003)

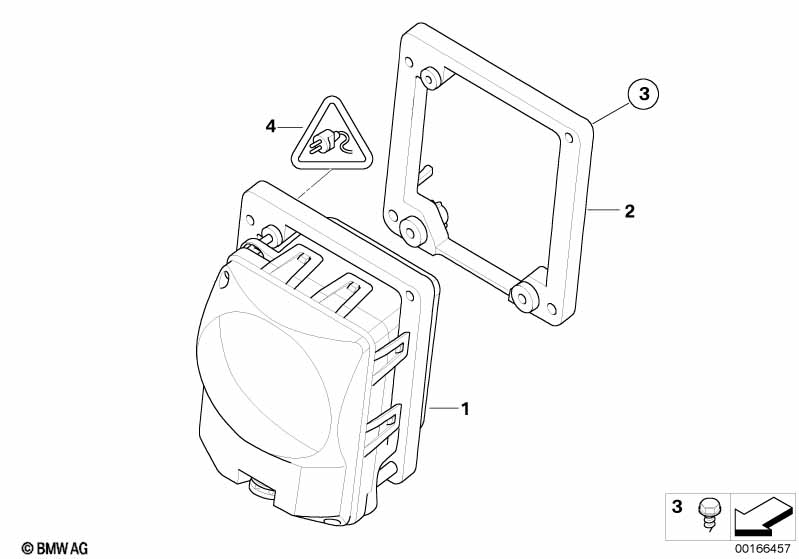

This Czujnik ACC technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Czujnik ACC | 1 | 06/2004 | 66316769144 | $3251.32 | Zakończono | Shop at ECS Tuning | |||
| 01 | Czujnik ACC | 1 | 03/2005 | 66316770000 | $3251.32 | Shop at ECS Tuning | ||||
| 02 | Uchwyt ACC | 1 | 03/2005 | 66316901277 | $72.58 | Shop at ECS Tuning | ||||
| 03 | Blachowkręt | 4 | 03/2005 | 07119904165 | $0.10 | Shop at ECS Tuning | ||||
| 04 | Uniwers. obudowa gniazda niekod. | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk gniazda MQS ELA | 0.2-0.5 MM² SN | 8 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS | 0,5-0,75 MM²/AU | 8 | 61131393726 | $0.68 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Czujnik ACC?
- This technical diagram illustrates the Czujnik ACC within the Distance Systems, Cruise Control group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Czujnik ACC (Part #66316769144).
- Which models use the hardware listed in this Czujnik ACC?
- The hardware and components featured in the Czujnik ACC are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Czujnik ACC (66316769144) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Czujnik ACC assembly?
- Each item in the Czujnik ACC corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Czujnik ACC by locating its position on the schematic, which then links to the official BMW part number 66316769144 for the Distance Systems, Cruise Control section.
