Kamera Night Vision for BMW 7 Series E65 745i (2003)

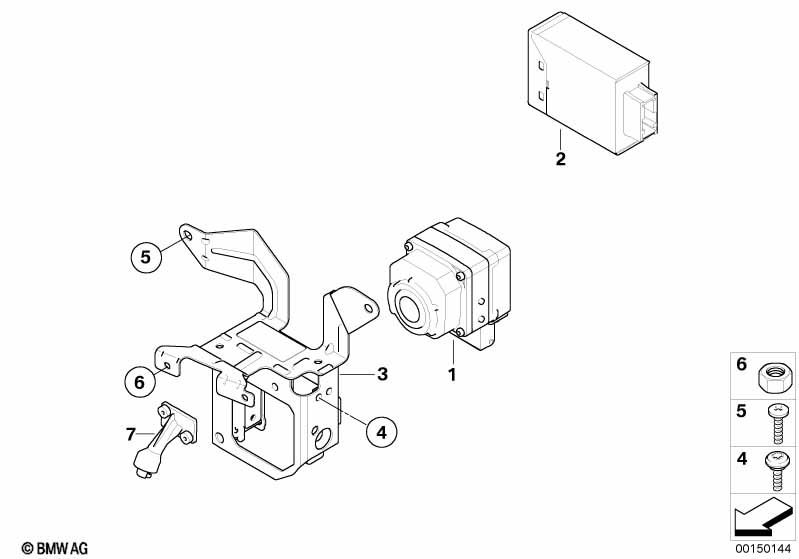

This Kamera Night Vision technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Nie pasuje dla krajów Kuba, Iran, Syria, Libia, Sudan i Korea Pn. Dla samochodów z Night Vision |
S611A=Tak |
||||||||
| Dla samochodów z Wersja krajowa Golf |
L822A=Nie |
|||||||||
| 01 | Kamera Night Vision | 1 | 66549167255 | $4652.02 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja krajowa Golf |
L822A=Tak |
|||||||||
| 01 | Kamera Night Vision | 1 | 66549166642 | Shop at ECS Tuning | ||||||
| 02 | Sterownik Night Vision Camera | 1 | 66549164992 | $145.95 | Shop at ECS Tuning | |||||
| 03 | Uchwyt kamery Night Vision | 1 | 66546962481 | $114.32 | Shop at ECS Tuning | |||||
| 04 | Śruba soczewkowa z zabezp. przed odkr. | 2 | 07146963883 | $1.25 | Shop at ECS Tuning | |||||
| 05 | Śruba soczewkowa | M5X16, SCHWARZ | 2 | 07146959926 | $1.08 | Shop at ECS Tuning | ||||
| 06 | Nakrętka sześciokątna | AM5-8-ZNS3 | 2 | 07129902975 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Dysza wtryskiwacza kamery Night Vision | 1 | 61677146056 | $11.90 | Shop at ECS Tuning | |||||
